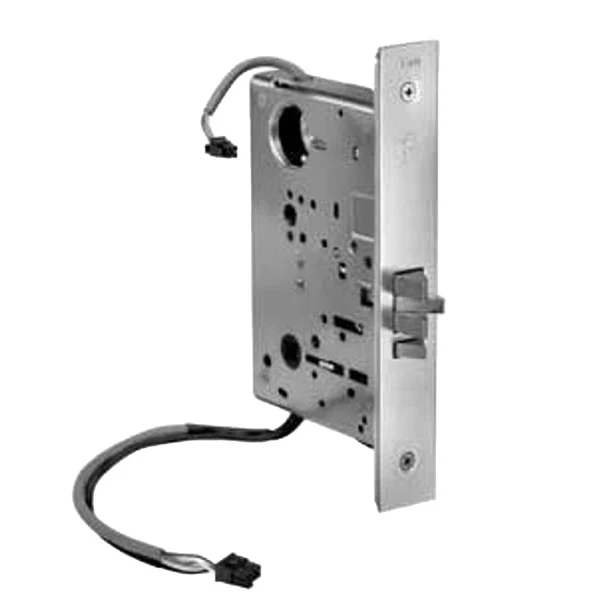

Accentra (Formerly Yale) - LBDY8891FL - Electric Mortise Lock Body -Satin Chrome - Body Only - Fire Rated - Grade 1
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free. Heavy-duty trim for resistance against damage and vandalism. UL/cUL listed for 3 hour fire rated doors. For Offices, shopping centers, industrial buildings, commercial facilities.
Features
- RX Request to Exit
- Power off ā outside lever locked
- Power on ā outside lever active
- Auxiliary latch deadlocks latchbolt
- Inside lever always free
- Mechanical key override by outside when locked
Ā
Specifications
| Handing | Field Reversible |
| Door Thickness | 1-3/4" (44 mm) |
| Cylinder | No Cylinder - Lock Body Only |
| Operating Voltage |
24VDC |
| Duty / Weight Class |
Heavy Duty |
| Application |
Stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashier stations, hospital equipment rooms and pharmaceutical storage rooms |
| Finish | 626 - Satin Chrome |
| Fire Rated | 3 Hours |
| Certifications |
Certified ANSI/BHMA A156.13 |
| Manufacturer Warranty | 2 Years Limited |
Ā
