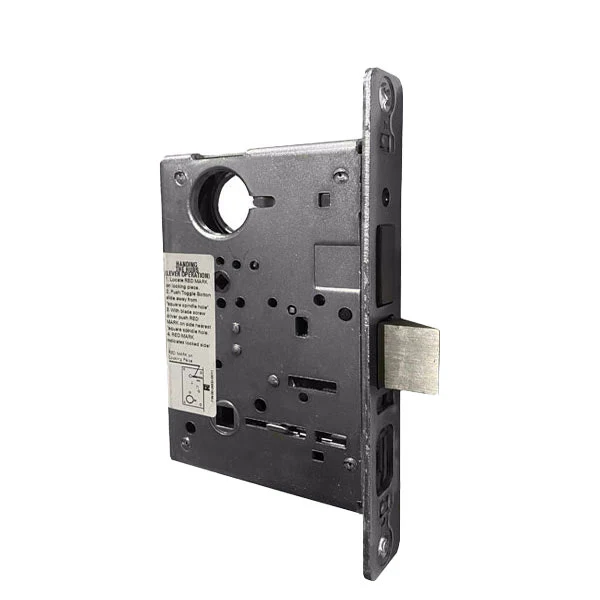

Accentra (Formerly Yale) - LBDY88-02-FL - Mortise Lock Body - Privacy - Satin Chrome - Body Only - Fire Rated - Grade 1

Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free. Heavy-duty trim for resistance against damage and vandalism. UL/cUL listed for 3 hour fire rated doors. For Offices, shopping centers, industrial buildings, commercial facilities.

Features

• Latchbolt retracted by knob/lever either side
• Deadbolt operated by thumbturn inside
• When the deadbolt is projected, outside knob/lever is automatically locked
• Anit-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever
• In emergency, deadbolt may be unlocked from outside by E203 emergency key



Specifications

Downloads

• Catalog
• Installation Guide
