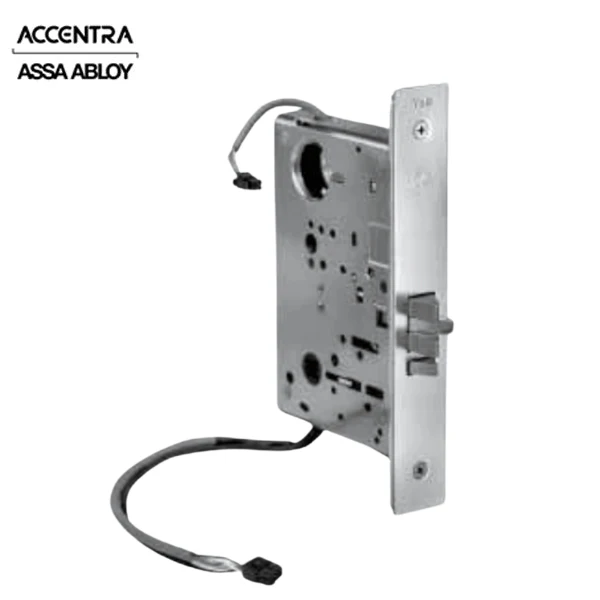

Accentra (Formerly Yale) - LBDY8891FL - Electric Mortise Lock Body - For Levers - 24VDC - Grade 1 - Satin Chrome - 626
This Yale 8800 Series LBDY8890FL-626-24V is an Electric mortise lock body designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latch bolt, and standard non-handed strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim, and ANSI/BHMA Grade 1 certification for long life and durability.
Features:

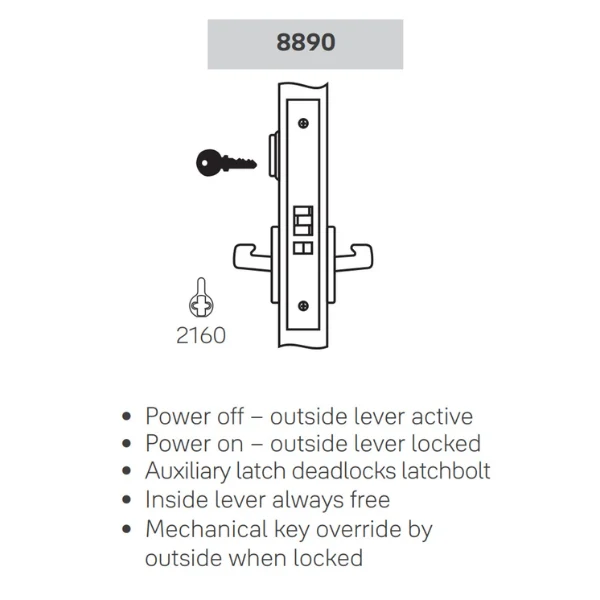

- Fail-Safe Operation: Locks when powered; unlocks during power outages for emergency egress.
- Voltage: Operates at 24VDC with a current draw of 0.25 amps
- Rose Diameter: 3-3/8"
- Projection: 3-1/16"
- ANSI Function: 08 (Key locks or unlocks lever)Ā
- Finish: Satin Chrome (626/US26D)
Ā
| Specification | Details |
|---|---|
| Amp Draw | .25 Amps |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Function | 90-Fail Safe Single Cylinder |
| Operating Voltage | 24VDC |
| Series | Yale 8800 Series Mortise Locks |
| Subtype | Electric Mortise Lock |
| Switch Type | None |
| Type | Electric Locks |
Ā
Downloads
Note:Ā This brand is in the process of a name change. Products may come with Yale or Accentra logos they are the same company.
