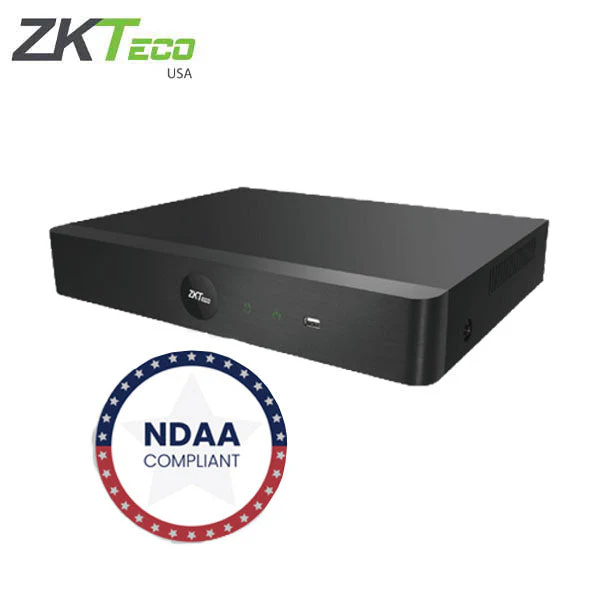

ZKTeco - Z8532NFR - 32 Channel H.265 NVR / 1SATA / 8MP / 16 Channel Local Playback
NVR of the Z8000NEQ series 8/16CH models could deliver up to 5MP resolution excellent image over advanced H.265 decoding. Itās an ideal consideration for the balance of quality, performance, and budget. The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback. Powered by the reliable interoperability and ONVIF Profile S, itās compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects.
Operating Temperature: 14Ā°F ~ 131Ā°F
Features:
- H.265+/H.265/H.264+/H.264 Decoding
- Support 16/32CH 4K Resolution Preview and Playback
- Support HDMI up to 4K output
- DHCP, FTP, DNS, DDNS, NTP, UPNP, RTSP etc.
- ONVIF Profile S Compatible
- Cloud Service, P2P
- Mobile phone remote monitoring (iOS, Android)
- Multi-browser access (IE, Chrome, Firefox, Safari)
Ā
Specifications:
| Parameter | Value |
|---|---|
| Model | Z8516NFR / Z8532NFR |
| System | |
| Processor | Multi-core Embedded Processor |
| Operation System | Embedded Linux |
| IVA Alarm | |
| Local IVA Functions | Target Counting, Object Detection, Intrusion, Tripwire |
| Regular Detection | Motion Detection / Video Tampering / Video Loss |
| I/O Port and Storage | |
| Network Interface | 1 RJ-45 port (10/100Mbps) |
| USB | 2*USB 2.0 |
| HDMI | 1 * 4K HDMI |
| VGA | 1 * VGA |
| Alarm Input | N/A |
| Alarm Output | N/A |
| HDD | 2 SATA, up to 8TB capacity for each HDD |
| RAID | N/A |
| Playback and Backup | |
| Playback Channel | 16 |
| Search Mode | IVA Search / Time / Motion Detection |
| Playback Function | Play, Stop, Play forward, Play backward, 30 seconds forward, 30 seconds backward, Fast play, Slow play, Single frame play, Hide/Show the time bar, Backup, Snapshot, Full screen |
| Backup Mode | USB device / Network |
| Video / Audio | |
| Max. IPC Input | Z8516NFR: 16 Z8532NFR: 32 |
| Audio Compression | G.711a |
| Two-way Talk | N/A |
| Recording | |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 8MP / 5MP / 3MP / 1080P / 960P / 720P |
| Incoming Bandwidth | 80Mbps |
| Bitrate | 16K - 8Mbps |
| Record Mode | Manual / External Alarm / Motion / Scheduled / IVA Alarm |
| Network | |
| Network Protocol | TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P |
| Max. Online Users | 5 |
| Mobile Application | AntarView Pro |
| Interoperability | Onvif Profile S, SDK |
| Power Supply | DC12V 3A |
| Consumption | ā¤ 20W (Without HDD) |
| General | |
| Working Temperature | -10ā ~ +55ā |
| Working Humidity | 10 ~ 90% |
| Dimensions | 325mm * 246mm * 50mm |
| Net Weight | 3KG |
| Gross Weight | 3.5KG |
| Ordering Information | |
| Type | Non PoE NVR |
| Part Number | Z8516NFR / Z8516NFR |
| Description | Z8516NFR: 16 channel 2 SATA NVR Z8532NFR: 32 channel 2 SATA NVR |
Ā
