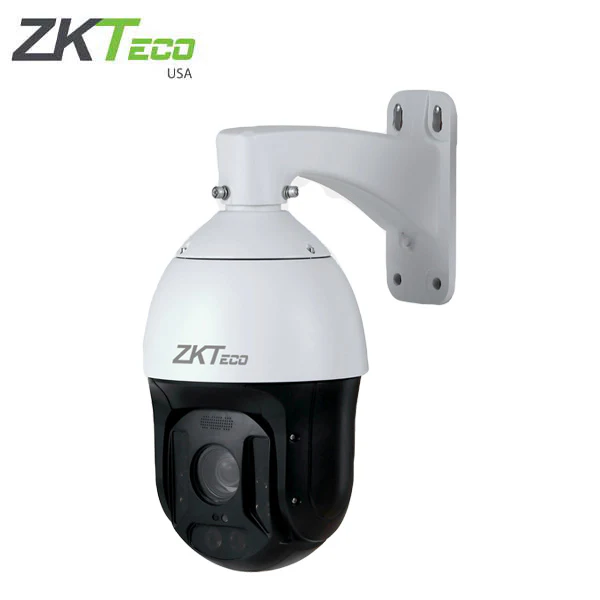

ZKTeco - PL-855C18M - Network PTZ Camera / 5MP CMOS Sensor / IP / 97.2 (mm) / Outdoor / IP67 / 120m IR

PL-855C18M is featured by the mini compact design which is only 6 inches and easy for installation. Powered by the cutting edge human detection technology, it could guard your region safely and filter out the false alarm. Coming with default PoE function, it brings more convenience to the installer for cabling and saving the labor cost.
With pan speed up to 180°/s, and tilt speed up to 100°/s, it would promise a large HD video coverage and secured details. It’s the ideal choice for SMB solutions, such as buildings, factories, schools which are designed for indoor and outdoor.

Features

• 1/3” 5MP CMOS sensor
• High quality 18X industrial camera module
• Support dual stream encoding
• Linkage with sound/strobe light and auto track by human detection
• Built in with speaker and microphone
• Support tour/pattern/A-B scan function
• IP66 rating
• DWDR/BLC/2D&3D noise reduction
• PoE

Specifications:

Camera
Image Sensor	1/3” 5MP CMOS
Lens	18X, f=5.4 ~ 97.2 (mm)
FOV	55.4°(W) ~ 3.55°(T)
scanning system	Progressive
electronic shutter	Auto/Manual(1/5s-1/100,000s)
min lighting	0.05Lux (color), 0.01Lux (BW), 0 Lux with IR on
infrared range	7pcs Array LED + 3pcs IR Laser + 2pcs Warm Strobe Lights, 120m
Video
Compression	H.265 / H.264
WDR	DWDR
Resolution	Main: 5MP@25f/s Sub: 640*480@25f/s
Day Night	Auto(ICR)/Colour/B/W
Bit rate control	CBR/VBR
White Balance	Auto / Custom / WB Locked / Incandescent Lamp / Warm Light / Natural Light / Fluorescent Lamp
Bit rate	Primary: 2Mbps ~ 8Mbps Secondary: 160Kbps ~ 896Kbps
gain control	Car
audio compression	G.711a/G.711u(32Kbps)/PCM(128Kbps)
noise reduction	2D & 3D DNR
HRC	supported
privacy mask	Up to 5 areas
human detection	Link with sound/strobe light and human detection alarm tracking
Audio I/Audio I/O	Built-in speaker and microphone
network
Protocol	TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Max. online user	3
onvif	Onvif profile
Browser	IE, Chrome, Firefox
P/T
Pan/tilt range	Pan: 0°~360°, Tilt: -5°~90°
Protection Index	IP66
pan speed	0~180°/s
Work environment	-20°C ~ 60°C, RH＜90%
tilt speed	0~100°/s
Power supply	PoE/DC 12V4A
preset	255
lightning protection	ESD 4000V
preset speed	7 selection levels
tour group	8
pattern group	4
AB Scan Group	8
Automatic mode	Supports idle motion, auto power-on detection, proportional optical zoom rotation speed changes
Protocol	Pelco-D, Pelco-P
Dimensions	Φ185*375(mm)
Net weight	3.5kg
Gross weight	4.5kg





Downloads:

• Datasheet
