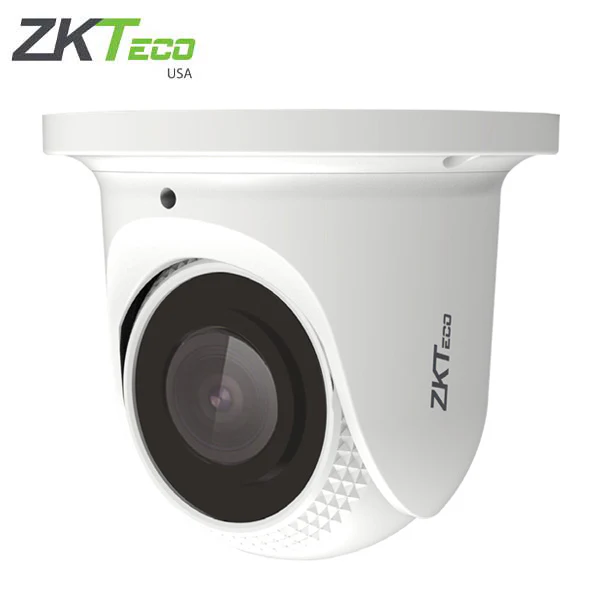

ZKTeco - ES-855P22C-S7-MI - Eyeball Camera / Pro Series / 5MP CMOS Sensor / IP / 3.6mm Lens / Outdoor / IP67 / 30m IR / Face Recognition

Lite Series is a super cost-efficient solution that is powered by cutting-edge technology for crystal clear video monitoring with embedded face detection algorithm, the camera supports White/Black list event alarm deployment in different scenarios. The camera also supports multiple industry-leading Intelligent video analytic functions, such as Face Detection for smart event alarms. The P2P cloud function is built-in for every device, allowing more convenient and flexible remote real-time viewing and monitoring.

Features:

• 1/2.8” CMOS sensor

• H.265 triple stream encoding

• 3.6mm high-quality optical lens

• 30m IR effective range

• Built-in PoE & Microphone

• An embedded face detection algorithm

• Intelligent video analytics available

• Multiple web browsers supported

• P2P cloud remote viewing by Mobile Application/VMS

• Lightning protection up to 6kV

• IP67 metal casing

Specifications:

Parameter	Value
Model	ES-855P22C-S7-MI
Image Sensor	1/2.8" CMOS
Effective Pixels	2560 * 1920
Flash / DDR	128Mb / 1Gb
IR LED No.	2
IR Distance	30m
S/N Ratio	> 52dB
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	3.6mm
Aperture	F1.6
FOV	85°
Optical Zoom	N/A
Compression	H.265 / H.264
Resolution	5MP (2560 x 1920) / 4MP (2688 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720)
Bitrate Control	CBR / VBR
Bitrate	H.265: 4Mbps - 16Mbps H.264: 5Mbps - 20Mbps
Multi-Streaming
Main Stream	5MP@25fps / 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps
Sub Stream	D1@25fps / VGA@25fps / CIF@25fps

Downloads:

• Specifications
