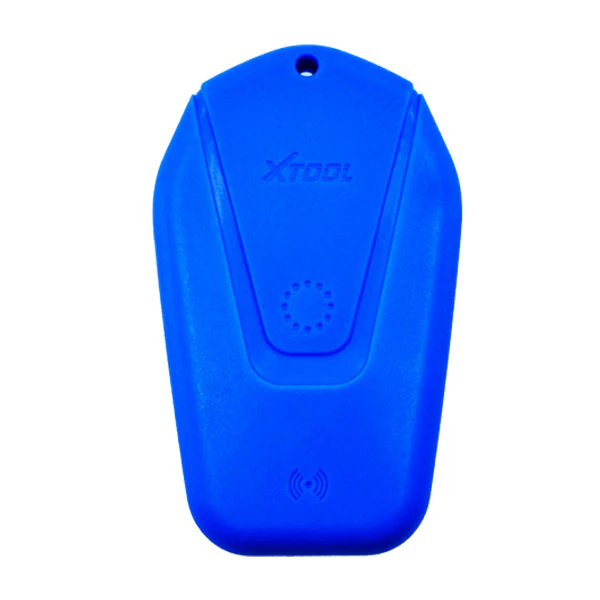

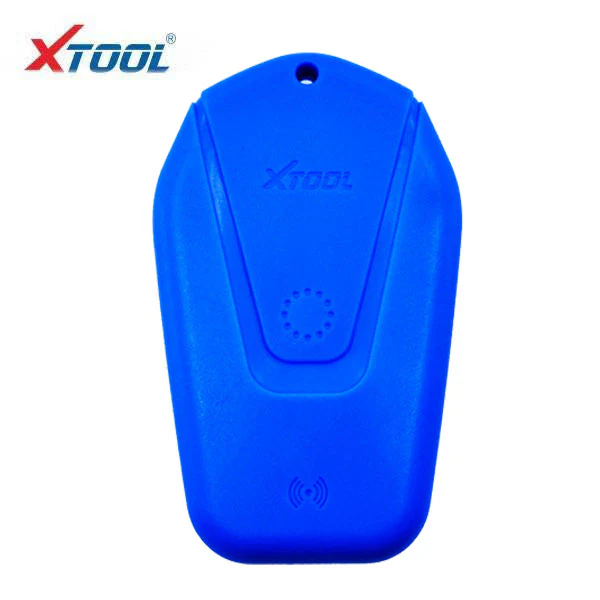

XTOOL - KS-1 - Toyota Smart Key Emulator - AutoProPad
The KS-1 is a smart key emulator for 40-bit Toyota, Lexus & Scion systems. It can read and store the vehicleās immobilizer data through any AutoProPAD FULLĀ Ā Ā AutoProPad G2Ā Ā or AutoProPad G2 TurboĀ programming device, then write it to the KS-1 and emulate a programmed master key.
The emulated ākeyā will allow you to switch the ignition on, so you can start the vehicle and perform active diagnostics. It will also serve to bypass the 16-minute immobilizer reset when programming an additional car key.
- Works for all AAB, AEM, and ACX Toyota/Lexus/Scion smart keys
- Requires internet connection
- Requires KC100 or KC501
Key Type Tested Already:
| NO. | Vehicle | Year | Key Type | Support or Not | Remarks |
| 1 | RAV4 | 2015 | 88 | Yes | Ā |
| 2 | Alphard | 2013 | 94 | Yes | Ā |
| 3 | Alphard | 2015 | A9 | Yes | Ā |
| 4 | Previa | 2008 | 94 | Yes | Ā |
| 5 | Crown | 2010 | 98 | Yes | Ā |
| 6 | Crown | 2015 | A8 | Yes | Ā |
| 7 | Crown | 2016 | A8 | No | After 2016,Toyota Crown is not supported |
| 8 | Prado | 2011 | 98 | Yes | Ā |
| 9 | Previa | 2013 | 94 | Yes | Ā |
| 10 | Reiz | 2011 | 98 | Yes | Ā |
| 11 | Innova | Ā | 39 | Yes | The car is being tested for the Indian Tango |
Ā
Specifications:
| Parameter | Index |
| Battery | CR2025 3V 165mAh |
| Standby current | Standby currentā¤2Ī¼A |
| Reading and writing frequency | 125kHz |
| Status Indicator Lamp | 1pc (mode: turn on and light up for 2s and then extinguish; Flicker, flash, 0.5s/ time when writing or reading) |
| Update | The simulation card firmware can be updated Ā with KC100 |
| Working temperature | -20ā~60ā |
| Storage temperature | -20ā~70ā |
| Structure size | 66mm*40mm*12mm |
Ā
