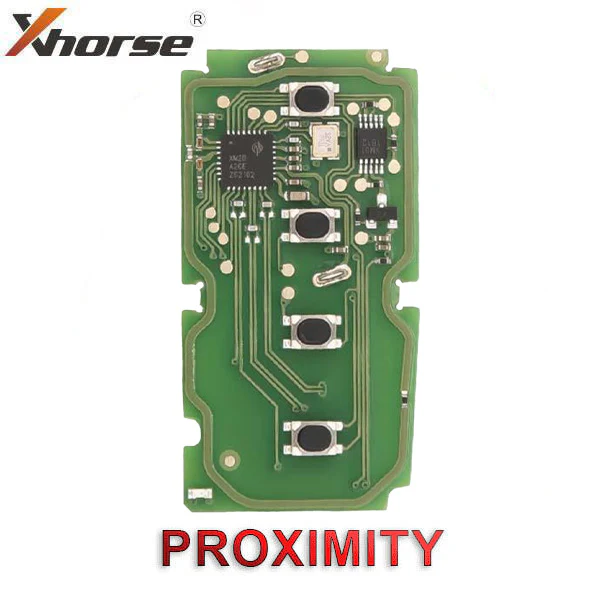

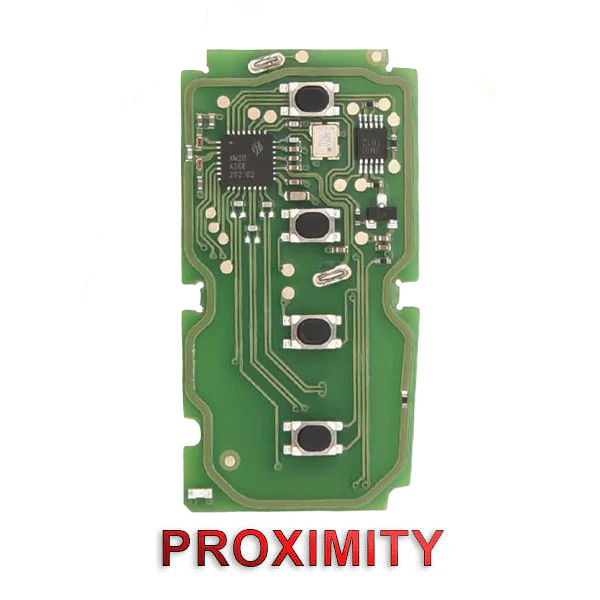

Xhorse - XSTO00EN - Toyota Smart Proximity Key - PCB 4D And 8A Series Toyota Models

This Xhorse Smart Proximity Universal Key PCB is designed for use with Toyota Vehicles. This PCB can be configured using the;

• VVDI2 Mini Key Tool
• VVDI Key Tool Max
• VVDI Key Tool Plus

Features:

• Coverage for Toyota/Lexus vehicles using 4D and 8A series Smart Keys
• Compatible with 40-bit, 80-bit, and 128-bit applications
• Reusable PCB that can't be renewed and re-written
• 315MHz, 315MHz, 314MHz, 433MHz supported



Supported Frequencies:

• 8A: 312.10/314.35, 314.35/315.10, 312.50/314.00, 314.00/315.10, 433.92, 433.57/434.41
• 4D: 315.12, 312.50, 433.92, 314.35, 314.00



Currently Supported PCB numbers in the USA: 0020, 0010, 2110:

• HYQ14FBA / G Board 0020
• HYQ14FBB / G Board 0010
• HYQ14FBA / AG Board 2110



Coverage for the following PCB numbers will be added in the near future: 3370, 5290, 7930, 7980, 0031, A433, F433, 0140, 0111, 7930, 7980, 0310, 0120, 0410, 0440

Please Note: 200 bonus points are required to generate each Xhorse Toyota Universal Prox PCB on the first initial use. Rewriting or changing the PCB configuration after the initial use does not require any additional bonus points.

Supported Frequencies:

• 8A: 312.10/314.35, 314.35/315.10, 312.50/314.00, 314.00/315.10, 433.92, 433.57/434.41
• 4D: 315.12, 312.50, 433.92, 314.35, 314.00



Supported Vehicles:

• 2013 - 2020 Lexus GS350

• 2013 - 2016 Lexus GS450H

• 2013 - 2018 Lexus ES350

• 2013 - 2018 Lexus ES300h

• 2016 - 2017 Lexus GS200t

• 2016 - 2020 Lexus RX350

• 2016 - 2020 Lexus RX450H

• 2015 - 2020 Lexus NX200T

• 2015 - 2020 Lexus NX300h

• 2016 - 2020 Lexus NX300

• 2012 - 2017 Toyota Camry

• 2013 - 2018 Toyota Avalon

• 2014 - 2020 Toyota Corolla

• 2013 - 2019 Toyota Rav4

• 2016 - 2021 Toyota Land Cruiser

• 2018 - 2021 Toyota C-HR

• 2014 - 2019 Toyota Highlander

• 2020 - Toyota Sequoia

• 2015 - 2020 Toyota Tacoma

• 2019 - 2020 Toyota Tundra

• 2020 - 2020 Toyota 4Runner



Compatible HYQ14FBA, HYQ14FBB:

• 3 Button HYQ14FBA Lexus Shell
• 4 Button HYQ14FBA Lexus Shell (Trunk)
• 4 Button HYQ14FBA, HYQ14FBB Lexus Shell (Hatch)
• 4 Button HYQ14FBA, HYQ14FBB Toyota Shell (Hatch)
• 3 Button HYQ14FBA Toyota Shell
• 4 Button HYQ14FBA Toyota Shell (Trunk)
• 4 Button HYQ14FBA Toyota Shell (Hatch)
