Xhorse - XM Series Toyota 4D - 8A Rewritable Smart Key PCB - TOY.T XSTO00EN - For VVDI2 - VVDI Key Tool - Mini - MAX - Plus Tablet

XHS-XSTO00GL

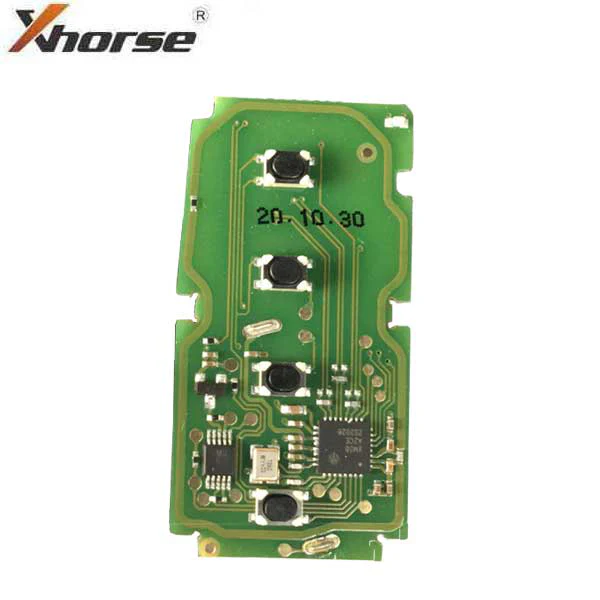

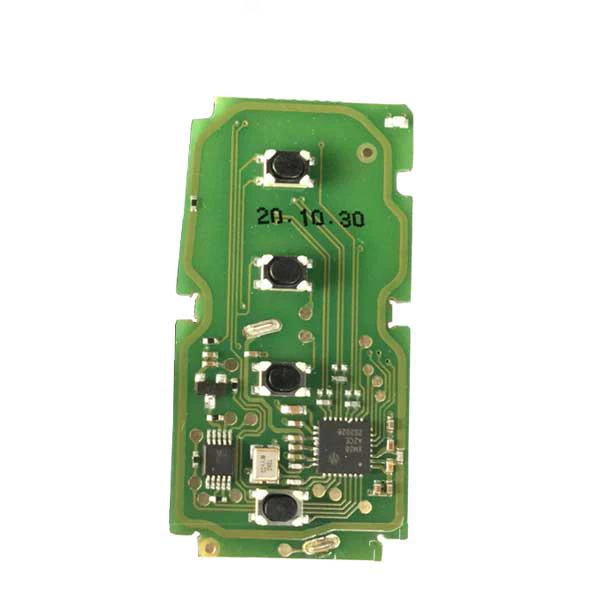

This is an XM Series Toyota 8A Rewriteable Smart Key PCB for use with the VVDI MINI Key Tool , the VVDI Key Tool MAX and the NEW VVDI Key Tool Plus Tablet.

Supports 315 / 433 Mhz

Supports both 4D and 8A series smart keys.

Compatible with 40bit , 80bit , 128bit, single frequency and dual frequency

Supports re-generation - Re-writable

•


Please note:
The first time generate the XM-Prox remote will cost 200 points, for re-use, free to generate.
Please update Xhorse APP to V2.1.3 or newer.

Current Board Numbers Supported

0020, 0010, 2110, 0182, 3330

Board Numbers Supported in Future Updates

3370, 5290, 7930, 7980, 0031, A433, F433, 0140, 0111, 7930, 7980, 0310, 0120, 0410, 0440

Supported Frequencies
312.10/314.35
314.35/315.10
312.50/314.00
314.00/315.10
433.92
433.57/434.41

Rewritable

Requires 200 points for the first time writing to key

Rewrite does not require points.

Support Toyota / Lexus Models:

• 2012-2017 Toyota Camry
• 2014-2019 Toyota RAV4
• 2012-2018 Toyota Corolla
• 2016-2016 Toyota Land Cruiser
• 2013-2017 Lexus GS300
• 2013-2017Lexus ES300
• 2013-2017Lexus GS400
• 2013-2017Lexus GS430
• 2013-2017 Lexus IS200
• 2013-2017 Lexus IS300
• 2013-2017 Lexus ES330
