Von Duprin - 2670 - GUARD-X - Exit Device - Heavy Duty - Alarm - Exit Only - No Trim - 3-4 Foot - 9V - Satin Aluminum - Grade 1

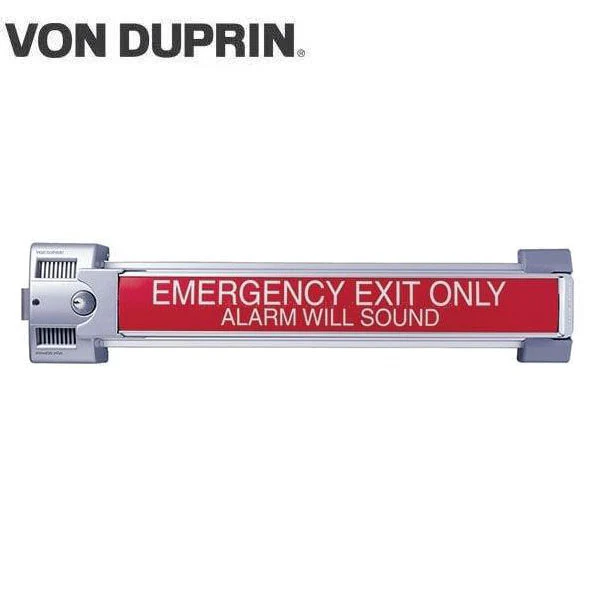

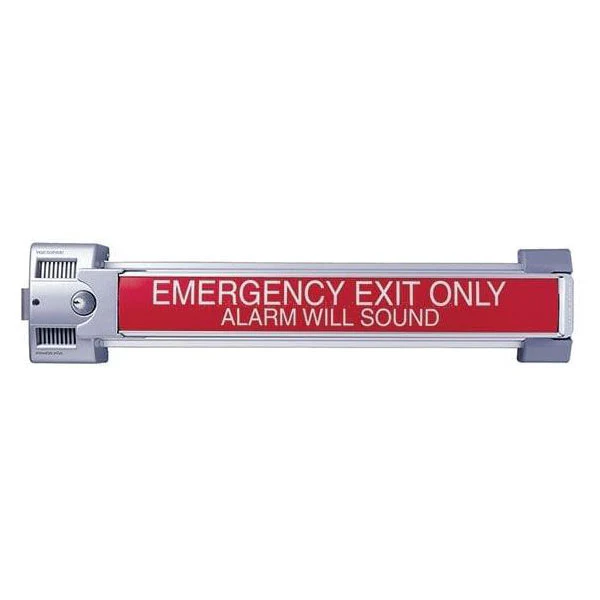

GUARD-X provides secure, alarmed code-compliant protection for secondary exits. GUARD-X exit alarm lock readily identifies the door on which it is mounted as an emergency exit and secures the opening against unauthorized use. It is ideal for deterring theft in restaurants and retail establishment such as: discount stores, grocery stores, drug stores, clothing stores and sporting goods stores.
Features
- UL listed for panic exit hardware (UL305)
- Tested in accordance to ANSI A156.3 Grade 1 panic hardware (250,000 cycles)
- Quick installation with an easy-to-use adhesive back template
- Non-handed design allows installer to mount for either hand by just removing and reversing the āEmergency Exit - Alarm Will Soundā sign built into the device
- Heavy duty construction with stainless steel deadbolt with cast aluminum latch case
- Only authorized person with a key can re-latch or reset the alarm after unauthorized exit
- 100-decibel alarm
- Armed and disarmed by key
- Alarm is powered by standard 9V battery or hardwired using optional PT790 power supply
Specifications
| Trim | No Trim - Exit Only |
| Device functions | Alarm emergency exit |
| Device lengths | 3' - 4' |
| Door width range | 36" to 48" (914mm to 1219mm) |
| Projection push bar |
Push bar neutral - 4 1ā8" (103mm) Push bar depressed - 2 3ā4" (70mm) |
| Latch case housing | 7" x 4 1ā16" x 4 1ā8" (179mm x 103mm x 105mm) |
| Device length | 32 1ā2" (826mm) |
| Alarm | 100-Decibel |
| Power Supply | 9V Battery |
| Minimum stile requirement | Single door 5 7ā8" Double door 6 1ā4" |
| Strikes | 269 - Roller strike, 2609 - Double door strike |
| Finish |
628 - US28 - Satin Aluminum |
| Certifications | ANSI/BHMA A156.3, Grade 1, ANSI/UL 305, CAN/ULC-S132 |
Downloads
