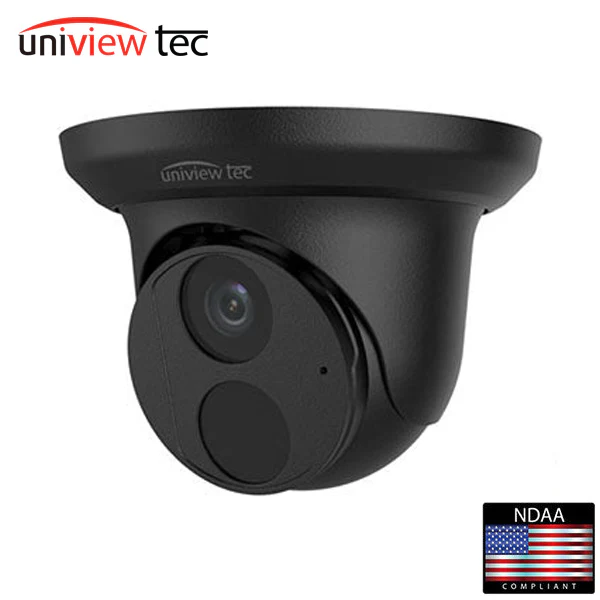

Uniview Tec / UVT / IPT428AIBX / Turret Dome Camera / 4MP / 2.8mm Fixed Lens / Lighthunter / True Day-Night / WDR / 30m IR

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• LightHunter Technology for ultra-high quality color video images in low light applications with up 4MP, 2688 x 1520 Resolution
• Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
• Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
• 2.8 fixed, wide-angle lens and One-way Audio with Built-in Microphone
• TRUE Day/Night and WDR functionality for all Lighting Conditions
• Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
• Triple Video Streams and ONVIF Profile S Compliant
• Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
• IP67 Weather Resistant Housing, 3-Way Axis and Optional Mounts Available
• PoE & 12VDC Power Options, & Built-in Micro-SD Card Slot enables local storage up to 256G
• Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

Camera
Sensor	1/3", progressive scan , 4 megapixel, CMOS
Lens	2.8mm @ F1.6
Angle of View (H x V)	101.1° x 55.3°
Shutter	Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination	Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
R LED Range & Wavelength	Up to 30m (98 ft) IR range; 850nm
WDR	120dB
Video Compression & Bit Rate	Ultra 265, H.265, H.264, MJPEG; 128 Kbps ~ 16 Mbps
H.264 code profile	Baseline profile, Main Profile
Maximum Frame Rate / Stream	Main: 4MP (2688 x 1520) @ 30fps Sub: 720p (1280 x 720) @ 30fps Third Stream: D1 (720 × 576) @ 30fps
HLC, BLC, 9;16 Corridor Mode, Defog, Flip	Supported
OSD, Privacy Mask, Motion Detection & ROI	Up to 8 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, G, T), API
Local & Network Storage	Micro-SD, up to 256GB; ANR
Network	RJ45, 10M/100M Base-TX Ethernet
Intelligent Perimeter Protection	Line Crossing, Intrusion & Leave Area detection w/ Smart Intrusion Prevention Technology for False Alarm Prevention
General
Power	12 VDC +/- 25%, PoE (IEEE802.3 af); Power consumption: Max 4W
Audio I/O & Compression	1 / 0, w/ built-in Microphone; G711
Dimensions (Ø x H) & Weight	Φ110.5 x 94.1 mm (Ø4.4 x 3.7”); 0.42kg (0.33lb)
Operating Temperature & Humidity	-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
Conformity Certifications	IP67, CE, FCC
