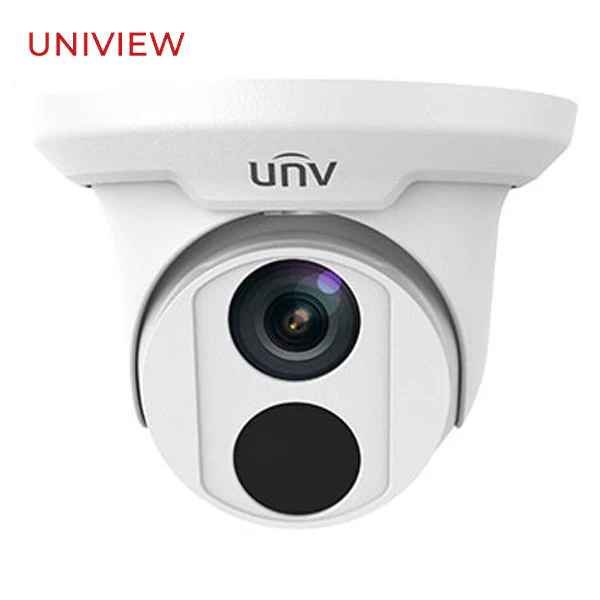

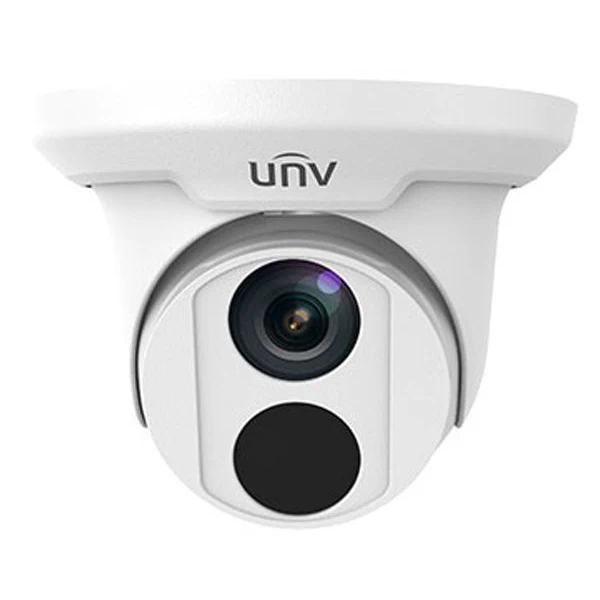

Uniview / UNV / IP / 8MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3618SR3-DPF28LM-F
- Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Compression
- Ultra 265,H.265,H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- Network
- ONVIF Conformance
- Structure
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67 protection
- 3-Axis
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Technical Specification
| Camera | |
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS |
| Lens | |
| DORI Distance - Lens [email protected] - Detect (m) | 84 |
| DORI Distance - Lens 2.8mm@F2.0 - Observe (m) | 33.6 |
| DORI Distance - Lens 2.8mm@F2.0 - Recognize (m) | 16.8 |
| DORI Distance - Lens 2.8mm@F2.0 - Identify (m) | 8.4 |
| Angle of View (H) | 112.7° |
| Angle of View (V) | 60.1° |
| Angle of View (O) | 146.5° |
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate:0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 30m (98ft) IR range |
| wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps Sub Stream:720P (1280*720): Max. 20 fps Third Stream:4CIF (704*576): Max. 20 fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | NA |
| HLC | Support |
| BLC | Support |
| Smart | |
| Behavior Detection | Human Body Detection |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS |
| Compatible Integration | ONVIF (Profile S+ Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Certifications | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: | Max 5W |

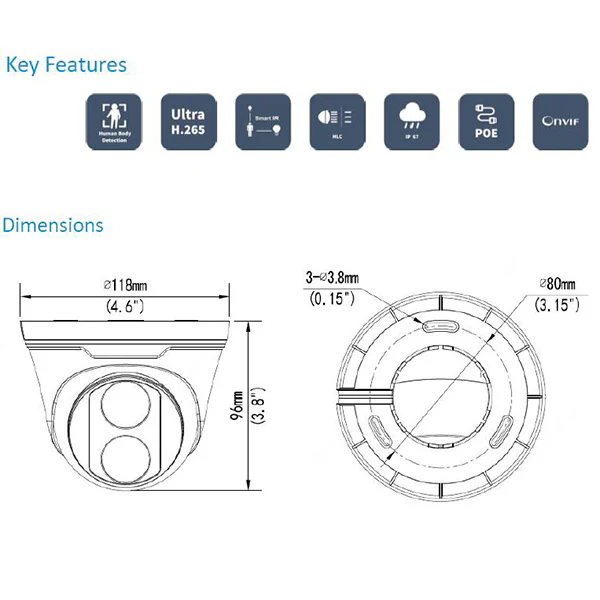

| Dimensions (L × W × H) | Φ118×96mm (Φ4.6”×3.8”) |
| Net Weight | 0.33kg (0.73lb) |
| Material | Front cover： metal Rear cover：plastic Bracket：plastic Bottom plate：metal |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) |
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) |
| surge protection | 2KV |
| Ingress Protection | IP67 |
Downloads
Data Sheet
Quick Start Guide
User Manual
Installation Guide
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265,H.264,MJPEG
- Triple streams
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Smart IR
Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.
ONVIF COMPATIBILITY
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.
ONVIF COMPATIBILITYIf you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
$62.37
Original: $178.20
-65%Uniview / UNV / IP / 8MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3618SR3-DPF28LM-F—
$178.20
$62.37Product Information
