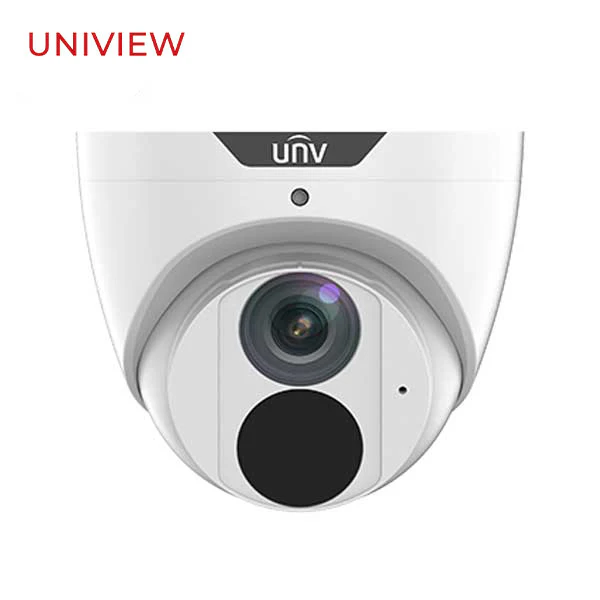

Uniview / UNV / IP / 8MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3618SB-ADF28KM-I0

Uniview / UNV / IP / 8MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3618SB-ADF28KM-I0


  • 8MP; 2.8mm
  • Supports 256 G Micro SD card
  • IP67 protection
  • True WDR 120dB
  • Built-in Mic
  • Smart IR up to 30m (98ft)
  • Ultra 265, H.265, H.264, MJPEG
  • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
  • Call 1-800-878-6604 for Dealer Prices!


    Camera
    Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
    Lens [email protected]
    DORI Distance Lens: 2.8mm
    Detect: 84m (275.6ft)
    Observe: 33.6m (110.2ft)
    Recognize: 16.8m (55.2ft
    Identify: 8.4m (27.5ft)
    Angle of View (H) 112.4°~ 86.5°
    Angle of View (V) 60.1°~ 44.1°
    Angle of View (O) 146.1°~112.5°
    Adjustment angle Pan: 3° ~ 360° / Tilt: 0° ~ 80° / Rotate: 3° ~ 360°
    Shutter Auto/Manual, 1 ~ 1/100000s
    Minimum Illumination Color: 0.01Lux (F2.0, AGC ON)
    0Lux with IR on
    WDR 120dB
    Digital noise reduction 2D/3D DNR
    Day/Night IR-cut filter with auto switch (ICR)
    S/N >56 dB
    IR Range Up to 30m (98ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Defog Digital Defog
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High Profile
    Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
    Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    ROI Up to 8 areas
    Privacy Mask Up to 4 areas
    OSD Up to 8 OSDs
    Motion Detection Up to 4 areas
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Smart IR Support
    Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    Dewarping Supported
    HLC Supported
    BLC Supported
    Audio
    Audio Compression G.711
    Suppression Supported
    Sampling Rate 8 KHZ
    Storage
    Edge Storage Micro SD, up to 256 GB
    Network Storage ANR
    Intelligent
    Smart Intrusion Prevention Line crossing detection, Intrusion detection, Leave Area detection;
    Events
    Basic Detection Motion detection, Tampering alarm, Audio Detection
    General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
    Interface
    Built-in Mic Supported
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Certifications
    Certifications CE: EN 60950-1
    UL: UL60950-1
    FCC: FCC Part 15
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 5.0W
    Dimensions (Ø x H) Ω110.5 x 94.1mm (Ω4.4” x 3.7”)
    Weight 0.44kg (0.97lb)
    Material Metal
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≀95% RH (non-condensing)
    Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≀95% RH (non-condensing)
    Surge Protection 2KV
    Ingress Protection IP67
    Reset Button N / A



    Downloads

    Digital Defog
    The Uniview 8MP WDR Eyeball Network IR Camera puts forward digital defog technology, which applies IR for imaging. All lost details in fog weather can be recognized perfectly.



    True WDR
    The 3618SB-ADF28KM-I0 IP Eyeball Camera has True 120dB WDR (Wide Dynamic Range). Scenes with a variable range of light are difficult for most cameras. However, with True WDR Cameras, scenes are rendered in full detail for bright and dim areas simultaneously. This is especially helpful in applications such as entry ways where you may have dim lighting indoors, but your doorway or windows have bright sunlight.



    ONVIF COMPATIBILITY
    If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.


    $309.00
    Uniview / UNV / IP / 8MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3618SB-ADF28KM-I0—
    $309.00

    Product Information

    Shipping & Returns

    Description


    • 8MP; 2.8mm
    • Supports 256 G Micro SD card
    • IP67 protection
    • True WDR 120dB
    • Built-in Mic
    • Smart IR up to 30m (98ft)
    • Ultra 265, H.265, H.264, MJPEG
    • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
    • Call 1-800-878-6604 for Dealer Prices!


      Camera
      Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
      Lens [email protected]
      DORI Distance Lens: 2.8mm
      Detect: 84m (275.6ft)
      Observe: 33.6m (110.2ft)
      Recognize: 16.8m (55.2ft
      Identify: 8.4m (27.5ft)
      Angle of View (H) 112.4°~ 86.5°
      Angle of View (V) 60.1°~ 44.1°
      Angle of View (O) 146.1°~112.5°
      Adjustment angle Pan: 3° ~ 360° / Tilt: 0° ~ 80° / Rotate: 3° ~ 360°
      Shutter Auto/Manual, 1 ~ 1/100000s
      Minimum Illumination Color: 0.01Lux (F2.0, AGC ON)
      0Lux with IR on
      WDR 120dB
      Digital noise reduction 2D/3D DNR
      Day/Night IR-cut filter with auto switch (ICR)
      S/N >56 dB
      IR Range Up to 30m (98ft) IR range
      Wavelength 850nm
      IR On/Off Control Auto/Manual
      Defog Digital Defog
      Video
      Video Compression Ultra 265, H.265, H.264, MJPEG
      H.264 code profile Baseline profile, Main Profile, High Profile
      Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
      Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
      Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
      Video Bit Rate 128 Kbps~16 Mbps
      ROI Up to 8 areas
      Privacy Mask Up to 4 areas
      OSD Up to 8 OSDs
      Motion Detection Up to 4 areas
      White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
      Smart IR Support
      Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
      Dewarping Supported
      HLC Supported
      BLC Supported
      Audio
      Audio Compression G.711
      Suppression Supported
      Sampling Rate 8 KHZ
      Storage
      Edge Storage Micro SD, up to 256 GB
      Network Storage ANR
      Intelligent
      Smart Intrusion Prevention Line crossing detection, Intrusion detection, Leave Area detection;
      Events
      Basic Detection Motion detection, Tampering alarm, Audio Detection
      General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
      Network
      Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
      Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
      Client EZStation
      EZView
      EZLive
      Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
      Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
      Interface
      Built-in Mic Supported
      Network 1 RJ45 10M/100M Base-TX Ethernet
      Certifications
      Certifications CE: EN 60950-1
      UL: UL60950-1
      FCC: FCC Part 15
      General
      Power DC 12V±25%, PoE (IEEE 802.3af)
      Power consumption: Max 5.0W
      Dimensions (Ø x H) Ω110.5 x 94.1mm (Ω4.4” x 3.7”)
      Weight 0.44kg (0.97lb)
      Material Metal
      Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≀95% RH (non-condensing)
      Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≀95% RH (non-condensing)
      Surge Protection 2KV
      Ingress Protection IP67
      Reset Button N / A



      Downloads

      Digital Defog
      The Uniview 8MP WDR Eyeball Network IR Camera puts forward digital defog technology, which applies IR for imaging. All lost details in fog weather can be recognized perfectly.



      True WDR
      The 3618SB-ADF28KM-I0 IP Eyeball Camera has True 120dB WDR (Wide Dynamic Range). Scenes with a variable range of light are difficult for most cameras. However, with True WDR Cameras, scenes are rendered in full detail for bright and dim areas simultaneously. This is especially helpful in applications such as entry ways where you may have dim lighting indoors, but your doorway or windows have bright sunlight.



      ONVIF COMPATIBILITY
      If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
