Uniview / UNV / IP / 5MP / Eyeball Camera / Motorized Varifocal / 2.8-12mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / Auto Focus / 3 Year Warranty / UNV-3635SR3-ADPZ-F
- High quality image with 5MP, 1/3"CMOS sensor
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Technical Specification
| Camera | |
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| DORI Distance - Lens 2.8mm - Detect (m) | 63.1 |
| DORI Distance - Lens 2.8mm - Observe (m) | 25.2 |
| DORI Distance - Lens 2.8mm - Recognize (m) | 12.6 |
| DORI Distance - Lens 2.8mm - Identify (m) | 6.3 |
| DORI Distance - Lens 12mm - Detect (m) | 270.3 |
| DORI Distance - Lens 12mm - Observe (m) | 108.1 |
| DORI Distance - Lens 12mm - Recognize (m) | 54.1 |
| DORI Distance - Lens 12mm - Identify (m) | 27.0 |
| Angle of View (H) | 96.23Ā°~ 31.69Ā° |
| Angle of View (V) | 69.98Ā°~ 24.28Ā° |
| Angle of View (O) | 125.10Ā°~37.39Ā° |
| Adjustment angle | Pan: 0Ā° ~ 360Ā° Tilt: 0Ā° ~ 90Ā° Rotate: 0Ā° ~ 360Ā° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >56dB |
| Defog | Digital Defog |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180Ā° |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Certifications | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
| Power | DC 12VĀ±25%, PoE (IEEE 802.3af) |
| Power consumption: | Max 8.16W |

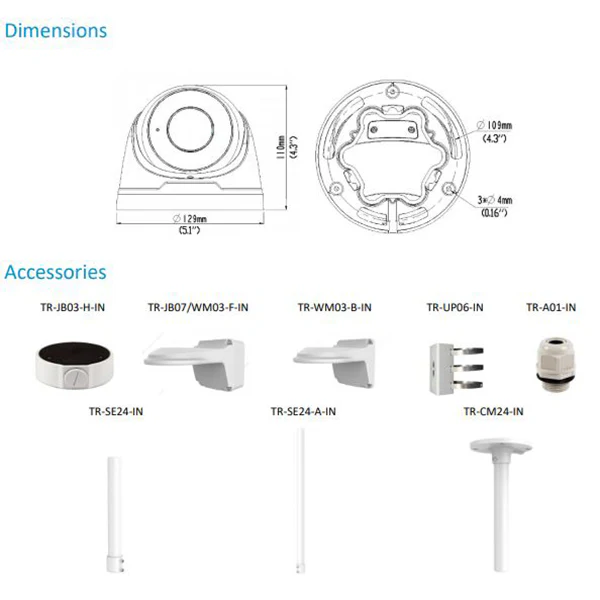

| Dimensions (L Ć W Ć H) | Ī¦129 x 110mm (Ć5.1ā x 4.3ā) |
| Net Weight | 0.67kg (1.48lb) |
| Material | Metal |
| Working Environment | -40Ā°C ~ 60Ā°C (-40Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) |
| Strorage Environment | -40Ā°C ~ 60Ā°C (-40Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) |
| surge protection | 2KV |
| Ingress Protection | IP67 |
| Reset Button | Supported |
Downloads
Data Sheet
Installation Guide
Quick Start Guide
User Manual
Optics
Day/night functionality
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Smart IR, up to 30m (98ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265,H.264, MJPEG
Triple streams
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -40Ā°C ~ 60Ā°C (-40Ā°F ~ 140Ā°F)
Wide voltage range of Ā±25%
IP67
3-Axis
Smart IR
Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.
Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.
ONVIF COMPATIBILITYIf you want to add this camera to a security system already set up, thatās no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, youāll be able to set this camera up with your current system.
