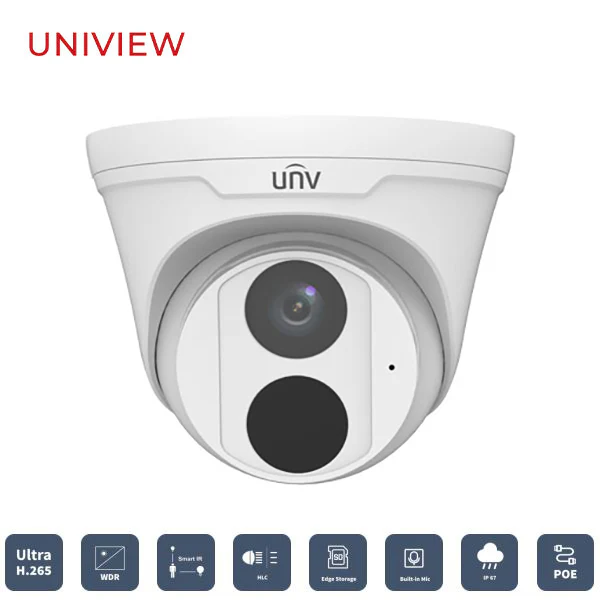

Uniview / UNV /IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3615SR3-ADPF28-F

Uniview / UNV /IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3615SR3-ADPF28-F


  • High quality image with 5MP, 1/3"CMOS sensor
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
  • Call 1-800-878-6604 for Dealer Prices!


    Technical Specification

    Camera
    Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
    Lens [email protected]
    DORI Distance - Lens 2.8mm - Detect (m) 63.0
    DORI Distance - Lens 2.8mm - Observe (m) 25.2
    DORI Distance - Lens 2.8mm - Recognize (m) 12.6
    DORI Distance - Lens 2.8mm - Identify (m) 6.3
    Angle of View (H) 105.6°
    Angle of View (V) 69.9°
    Angle of View (O) 137.3°
    Adjustment angle Pan: 0° ~ 360°
    Tilt: 0° ~ 80°
    Rotate: 0° ~ 360°
    Shutter Auto/Manual, 1 ~ 1/100000s
    Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
    0Lux with IR on
    Day/Night IR-cut filter with auto switch (ICR)
    Digital noise reduction 2D/3D DNR
    S/N >56dB
    Defog Digital Defog
    IR Range Up to 30m (98ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    WDR 120dB
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile
    Frame Rate Main Stream: 5MP (2592*1944), Max 25fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
    Sub Stream: 720P (1280*720), Max 25fps;
    Third Stream: 4CIF (704*576), Max 25fps
    Video Bit Rate 128 Kbps~16 Mbps
    OSD Up to 4 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 4 areas
    Motion Detection Up to 4 areas
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Digital Noise Reduction 2D/3D DNR
    Smart IR Supported
    Flip Normal/Vertical/Horizontal/180°
    Dewarping N/A
    HLC Supported
    BLC Supported
    Audio
    Audio Compression G.711
    Suppression Supported
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 128 GB
    Network Storage ANR
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
    Compatible Integration ONVIF (Profile S, Profile T), API
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
    Interface
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Built-in Mic Supported
    Certifications
    Certifications CE: EN 60950-1
    UL: UL60950-1
    FCC: FCC Part 15
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 5.5W

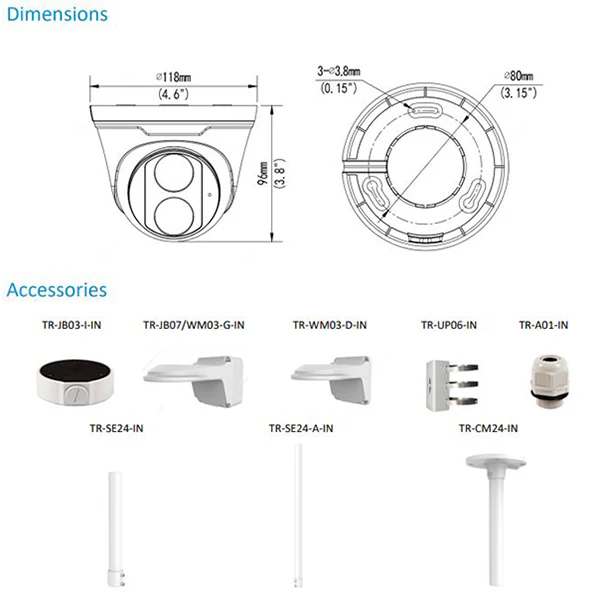

    Dimensions (L × W × H) Φ118 x 96mm (Φ4.6” x 3.8”)
    Net Weight 0.33kg (0.73lb)
    Material Metal + Plastic
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    surge protection 2KV
    Ingress Protection IP67


    Downloads
    Data Sheet
    Installation Guide
    Quick Start Guide
    User Manual


    Smart IR
    Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.



    ONVIF COMPATIBILITY
    If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
    $179.00
    Uniview / UNV /IP / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 30m Smart IR / 3 Year Warranty / UNV-3615SR3-ADPF28-F—
    $179.00

    Product Information

    Shipping & Returns

    Description


    • High quality image with 5MP, 1/3"CMOS sensor
    • Ultra 265, H.265, H.264, MJPEG
    • 120dB true WDR technology enables clear image in strong light scene
    • Smart IR, up to 30m (98ft) IR distance
    • Supports 256 G Micro SD card
    • IP67 protection
    • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
    • Call 1-800-878-6604 for Dealer Prices!


      Technical Specification

      Camera
      Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
      Lens [email protected]
      DORI Distance - Lens 2.8mm - Detect (m) 63.0
      DORI Distance - Lens 2.8mm - Observe (m) 25.2
      DORI Distance - Lens 2.8mm - Recognize (m) 12.6
      DORI Distance - Lens 2.8mm - Identify (m) 6.3
      Angle of View (H) 105.6°
      Angle of View (V) 69.9°
      Angle of View (O) 137.3°
      Adjustment angle Pan: 0° ~ 360°
      Tilt: 0° ~ 80°
      Rotate: 0° ~ 360°
      Shutter Auto/Manual, 1 ~ 1/100000s
      Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
      0Lux with IR on
      Day/Night IR-cut filter with auto switch (ICR)
      Digital noise reduction 2D/3D DNR
      S/N >56dB
      Defog Digital Defog
      IR Range Up to 30m (98ft) IR range
      Wavelength 850nm
      IR On/Off Control Auto/Manual
      WDR 120dB
      Video
      Video Compression Ultra 265, H.265, H.264, MJPEG
      H.264 code profile Baseline profile, Main Profile
      Frame Rate Main Stream: 5MP (2592*1944), Max 25fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
      Sub Stream: 720P (1280*720), Max 25fps;
      Third Stream: 4CIF (704*576), Max 25fps
      Video Bit Rate 128 Kbps~16 Mbps
      OSD Up to 4 OSDs
      Privacy Mask Up to 4 areas
      ROI Up to 4 areas
      Motion Detection Up to 4 areas
      White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
      Digital Noise Reduction 2D/3D DNR
      Smart IR Supported
      Flip Normal/Vertical/Horizontal/180°
      Dewarping N/A
      HLC Supported
      BLC Supported
      Audio
      Audio Compression G.711
      Suppression Supported
      Sampling Rate 8KHZ
      Storage
      Edge Storage Micro SD, up to 128 GB
      Network Storage ANR
      Network
      Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
      Compatible Integration ONVIF (Profile S, Profile T), API
      Client EZStation
      EZView
      EZLive
      Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
      Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
      Interface
      Network 1 RJ45 10M/100M Base-TX Ethernet
      Built-in Mic Supported
      Certifications
      Certifications CE: EN 60950-1
      UL: UL60950-1
      FCC: FCC Part 15
      General
      Power DC 12V±25%, PoE (IEEE 802.3af)
      Power consumption: Max 5.5W
      Dimensions (L × W × H) Φ118 x 96mm (Φ4.6” x 3.8”)
      Net Weight 0.33kg (0.73lb)
      Material Metal + Plastic
      Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
      Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
      surge protection 2KV
      Ingress Protection IP67


      Downloads
      Data Sheet
      Installation Guide
      Quick Start Guide
      User Manual


      Smart IR
      Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.



      ONVIF COMPATIBILITY
      If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
