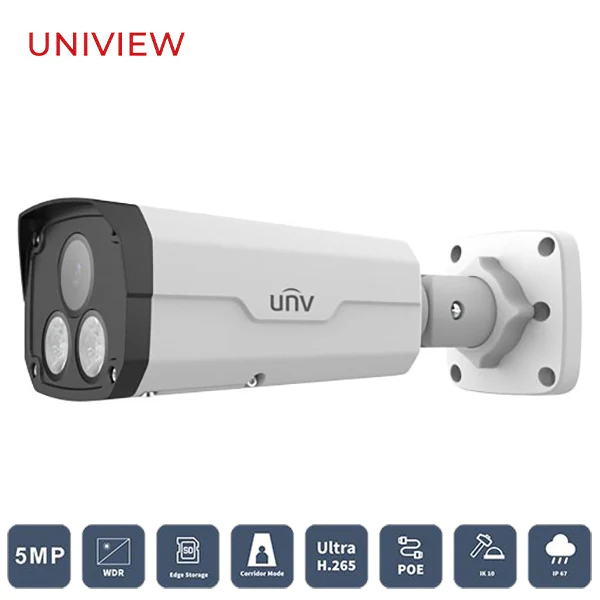

Uniview / UNV / IP / 5MP / Bullet Camera / Fixed / 4mm Lens / Outdoor / WDR / IP67 / IK10 / ColorHunter / 3 Year Warranty / UNV-2225SE-DF40K-WL-I0

Uniview / UNV / IP / 5MP / Bullet Camera / Fixed / 4mm Lens / Outdoor / WDR / IP67 / IK10 / ColorHunter / 3 Year Warranty / UNV-2225SE-DF40K-WL-I0

  • High quality image with 5MP, 1/2.7" CMOS sensor
  • 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@25fps; 2MP (1920*1080)@30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Supports 9:16 corridor mode
  • Alarm: 1 in/1 out, Audio: 1 in/1 out
  • Supports 256GB micro SD card
  • IK10 vandal-resistant
  • IP67 protection
  • Supports PoE power supply
  • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
  • Call 1-800-878-6604 for Dealer Prices!

Technical Specification

Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
DORI Distance - Lens [email protected] - Detect (m) 90.0
DORI Distance - Lens [email protected] - Observe (m) 36.0
DORI Distance - Lens [email protected] - Recognize (m) 18.0
DORI Distance - Lens [email protected] - Identify (m) 9.0
Angle of View (H) 80.2°
Angle of View (V) 43.0°
Angle of View (O) 94.7°
Adjustment angle Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON)
S/N >56dB
Defog Digital Defog
LED Distance Up to 30m (98ft)
WDR 120dB
Frame Rate Main Stream: 5MP (2880*1620) Max 25fps; 4MP (2560*1440) Max 25fps; 3MP (2304*1296) Max 25fps; 2MP (1920*1080) Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
HLC Supported
BLC Supported
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Power DC 12V ± 25%, PoE (IEEE 802.3af)
Power Consumption Max 9.0W

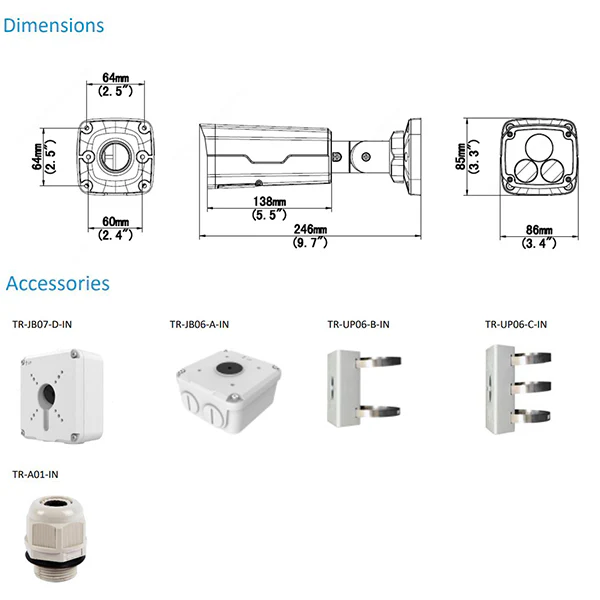

Dimensions (L × W × H) 246 × 86 × 85mm (9.7” × 3.4” × 3.3”)
Net Weight 0.92kg (2.02lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10

Downloads

Data Sheet
Installation Guide
Quick Start Guide
$309.00
Uniview / UNV / IP / 5MP / Bullet Camera / Fixed / 4mm Lens / Outdoor / WDR / IP67 / IK10 / ColorHunter / 3 Year Warranty / UNV-2225SE-DF40K-WL-I0—
$309.00

Product Information

Shipping & Returns

Description

  • High quality image with 5MP, 1/2.7" CMOS sensor
  • 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@25fps; 2MP (1920*1080)@30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Supports 9:16 corridor mode
  • Alarm: 1 in/1 out, Audio: 1 in/1 out
  • Supports 256GB micro SD card
  • IK10 vandal-resistant
  • IP67 protection
  • Supports PoE power supply
  • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
  • Call 1-800-878-6604 for Dealer Prices!

Technical Specification

Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
DORI Distance - Lens [email protected] - Detect (m) 90.0
DORI Distance - Lens [email protected] - Observe (m) 36.0
DORI Distance - Lens [email protected] - Recognize (m) 18.0
DORI Distance - Lens [email protected] - Identify (m) 9.0
Angle of View (H) 80.2°
Angle of View (V) 43.0°
Angle of View (O) 94.7°
Adjustment angle Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON)
S/N >56dB
Defog Digital Defog
LED Distance Up to 30m (98ft)
WDR 120dB
Frame Rate Main Stream: 5MP (2880*1620) Max 25fps; 4MP (2560*1440) Max 25fps; 3MP (2304*1296) Max 25fps; 2MP (1920*1080) Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
HLC Supported
BLC Supported
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Power DC 12V ± 25%, PoE (IEEE 802.3af)
Power Consumption Max 9.0W
Dimensions (L × W × H) 246 × 86 × 85mm (9.7” × 3.4” × 3.3”)
Net Weight 0.92kg (2.02lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10

Downloads

Data Sheet
Installation Guide
Quick Start Guide
