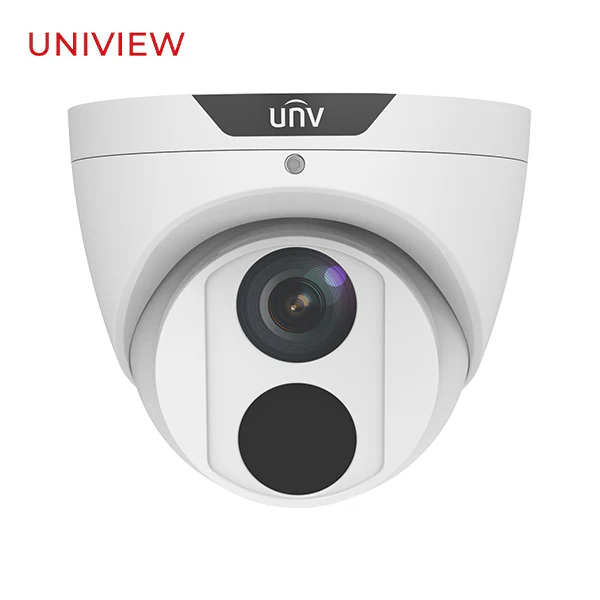

Uniview / UNV / IP / 4MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 40m Smart IR / 3 Year Warranty / UNV-3614SS-ADF28KM

Uniview / UNV / IP / 4MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 40m Smart IR / 3 Year Warranty / UNV-3614SS-ADF28KM


  • High quality image with 4MP, 1/3", CMOS
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Smart IR, up 40m (131ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
  • Call 1-800-878-6604 for Dealer Prices!


    Technical Specification

    Camera
    Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
    Lens
    DORI Distance - Lens 2.8mm - Detect (m) 63
    DORI Distance - Lens 2.8mm - Observe (m) 25.2
    DORI Distance - Lens 2.8mm - Recognize (m) 12.6
    DORI Distance - Lens 2.8mm - Identify (m) 6.3
    Angle of View (H) 107.8°
    Angle of View (V) 57.0°
    Angle of View (O) 140.1°
    Adjustment angle Pan: 0° ~ 360°
    Tilt: 0° ~ 90°
    Rotate:0° ~ 360°
    Shutter Auto/Manual, 1 ~ 1/100000s
    Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
    0Lux with IR on
    Day/Night IR-cut filter with auto switch (ICR)
    S/N >52dB
    IR Range Up to 40m (131ft) IR range
    wavelength 850nm
    IR On/Off Control Auto/Manual
    Defog Digital Defog
    WDR 120dB
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High Profile
    Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
    Frame Rate Sub Stream: 2MP (1920*1080), Max 30fps;
    Frame Rate Third Stream: D1 (720*576), Max 30fps
    Video Bit Rate 128 Kbps~16 Mbps
    9:16 Corridor Mode Supported
    OSD Up to 8 OSDs
    Privacy Mask Up to 8 areas
    ROI Up to 8 areas
    Motion Detection Up to 4 areas
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Digital noise reduction 2D/3D DNR
    Smart IR Support
    Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    Dewarping Support
    HLC Support
    BLC Support
    Smart
    Behavior Detection Intrusion, cross line, motion detection, Human Body Detection
    Intrusion Enter and loiter in a pre-defined virtual region
    cross line Cross a pre-defined virtual line
    motion detection Moving within a pre-defined virtual region
    Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
    General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR, NAS(NFS)
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,
    SNMP, QoS, NAS
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
    EZStation EZView
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
    Interface
    Built-in Mic Supported
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Certifications
    Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
    General
    Power DC 12V±25%,PoE (IEEE 802.3af)
    Power consumption: Max 4.0W
    Dimensions (L × W × H) 110.5 x 94.1mm (Ø4.4” x 3.7”)
    Net Weight 0.43kg (0.94lb)
    Material Metal
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≀95% RH (non-condensing)
    Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≀95% RH (non-condensing)
    surge protection 2KV
    Ingress Protection IP67

    Downloads
    Data Sheet



    Optics
    • Day/night functionality
    • Up to 120dB WDR (Wide Dynamic Range)
    • Smart IR, up to 40m (131ft) IR distance
        Compression
        • Ultra 265, H.265, H.264, MJPEG
        • Embedded smart algorithm
        • Triple streams
        • 9:16 corridor format
        Network
        • ONVIF Conformance
        Structure
        • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
        • Wide voltage range of ±25%
        • 4KV surge protection designed for network interface
        • IP67
        • 3-Axis
          Smart IR
          Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.



          ONVIF COMPATIBILITY
          If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
          $52.15

          Original: $149.00

          -65%
          Uniview / UNV / IP / 4MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 40m Smart IR / 3 Year Warranty / UNV-3614SS-ADF28KM—

          $149.00

          $52.15
