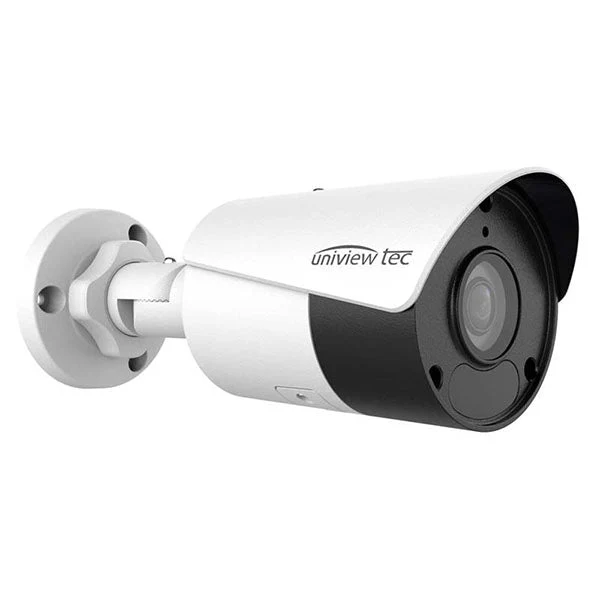

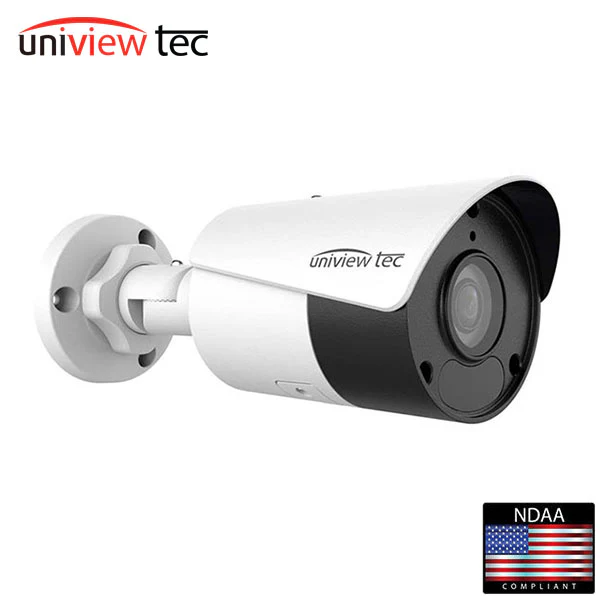

Uniview Tec / UVT / IPB4E28X / Bullet Camera / 4MP / 2.8mm Lens / True Day-Night / WDR / 50m IR

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
• Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
• Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
• 2.8 fixed, wide-angle lens
• One-way Audio with Built-in Microphone
• TRUE Day/Night and WDR functionality for all Lighting Conditions
• Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
• Dual Video Streams & ONVIF Profile S Compliant
• Intrusion Detection Analytics
• PoE & 12VDC Power Options
• Built-in Micro-SD Card Slot enables local storage up to 256GB
• IP67 Weather Resistant Housing
• 3-Way Axis and Optional Mounts Available
• Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

Camera
Sensor	1/3", progressive scan , 4 megapixel, CMOS
Lens	2.8 mm@ F1.6
Angle of View (H x V)	101.1° x 55.3°
Shutter	Auto/Manual, 1/6 ~ 1/100000 s
Minimum Illumination	Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
Smart IR LED Range / Wavelength	Up to 50m (164ft) IR range / 850nm
WDR	120dB
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream	Main: 4MP (2688 x 1520) @ 25fps Sub: 720P (1280 x 720) @ 30fps
HLC, BLC, 9:16 Corridor, Defog, Flip	Supported
OSD, Privacy Mask, Motion Detection & ROI	Up to 8 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, G, T), API
Network	RJ45, 10M/100M Base-TX Ethernet
Intrusion Detection	Cross Line, Intrusion, Motion & Tampering Detection
Local & Network Storage	Micro-SD, up to 256GB; ANR
General
Power	12VDC, PoE (IEEE802.3 af); Power consumption: Max 6W
Audio	1 / 0, w/ built-in Mic; G.711
Dimensions (L x W x H) & Weight	190 × 73 × 71mm (7.5 × 2.9 × 2.8”); 0.45kg (0.99lb)
Operating Temperature & Humidity	-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
Conformity Certifications	IP67, CE, FCC

Downloads:

• Spec Sheet
• User Manual
• Installation Guide
• Quick Set Up
