Uniview / UNV / 8-Channel / 8MP / 4K / NVR / 1 SATA / HDD up to 6 TB / UNV-301-08LX-P8
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Technical Specification
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz ,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| PoE | |
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |

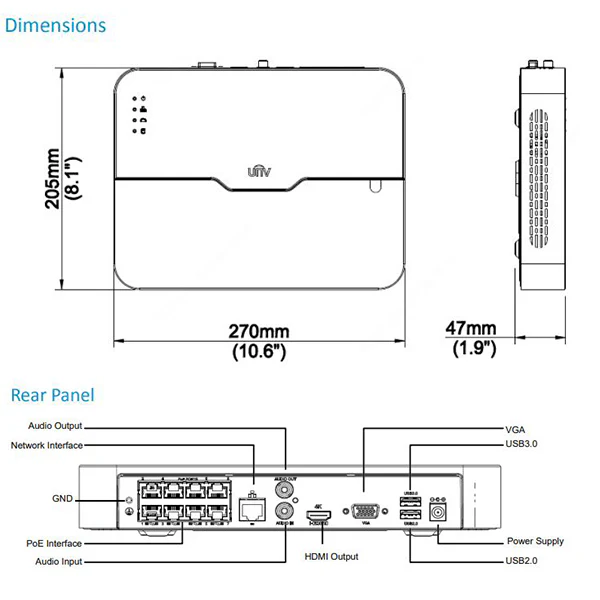

| Dimensions (W×D×H) | 270mm × 205mm × 47mm (10.6"×8.1"×1.9") |
| Weight (without HDD) | ≤0.8kg (1.76lb) |
Downloads
Data Sheet
Quick Start Guide
User Manual
ONVIF COMPATIBILITYIf you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
