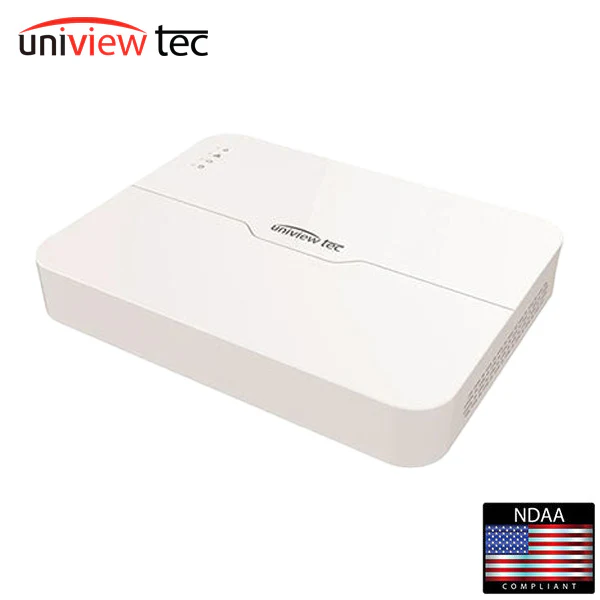

Uniview Tec / UVT / NR04XP / 4ch / 4 PoE / 4K Resolution / H.265 NVR - Optional HDD

Key Features

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• 4ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
• Supports 1 SATA HDD up to 8TB and has Embedded PoE Switch for all Video Channels
• Supports recording of up to 4K (8MP), 3840 x 2160 Resolution Images
• Display Images up to 4K (8MP) Resolution on HDMI Output
• Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
• Easy Plug and Play Functionality with Automatic Device Discovery and Display
• Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile S, G and T Compliant
• Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

Video
IP Camera Inputs	4 channels
Video Formats	Ultra 265, H.265, H.264
Recording Video Resolution	4K (8MP), 3840 x 2160 Maximum
Playback Video Capability (fps)	1 x 4K @ 30, 4 x 5MP @ 25, 4 x 4MP @ 25, 4 x 3MP @ 25, 4 x 1080p @ 30
Monitor Output	1 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720p)
Synchronous Playback	4 channels
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Bandwidth	Incoming – 64Mbps; Outgoing – 48Mbps
Remote Users	128
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
General
Network Interface	1 – RJ45, 10M/100M, self-adaptive Ethernet
USB Interface	Rear panel: 2 x USB2.0
PoE Interface	4 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 54W total
Audio Interface	1ch RCA Output
Hard Disk	1 SATA, up to 8TB
Power	48VDC; 9W Consumption (w/o HDD)
Operating Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions (WxDxH)	205 × 205 × 46mm (8.1 × 8.1 × 1.8")
Weight (w/o HDD)	06kg（1.3lb）
Conformity Certifications	FCC, CE (UL – Power Supply only)
