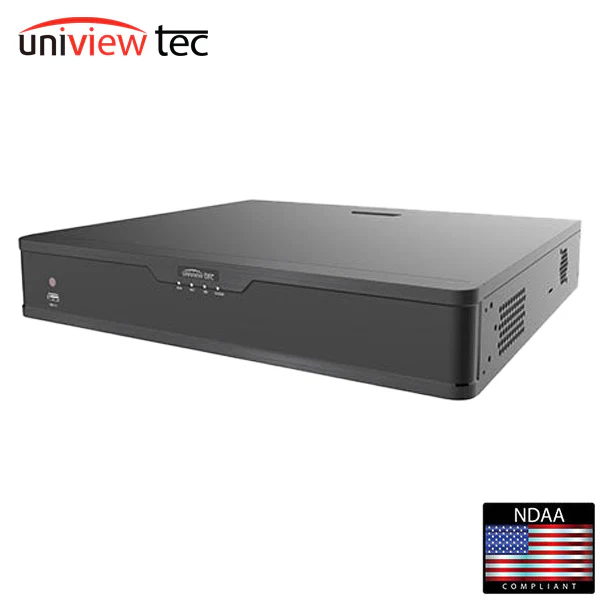

Uniview Tec / UVT / NR32XP / 32ch / 16 PoE / 4K Resolution / 4-bay HDD / H.265 NVR - Optional HDD
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 32ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- Embedded PoE Switch for 16 Channels Up to 240W
- Supports recording of up to 4K (3840 x 2160) Resolution Images
- Display 4K (3840 x 2160) Resolution Images on HDMI Output
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- ONVIF Profile S Compliant
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 4 SATA HDD’s up to 10TB each for 40TB total
- Two way audio and Alarm I/O Support
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- Long Range PoE Capability, up to 250M (825ft) with Cat5E or Cat6
Key Features
| Video | |
|---|---|
| IP Camera Inputs | 32 channels |
| Video Formats | Ultra 265, H.265, H.264 |
| Recording Video Resolution | 4K (8MP) Maximum |
| Playback Video Capability (fps) | 2 x 4K @ 30; 4 x 4MP @ 30; 5 x 3MP @ 30; 8 x 1080P @ 30; 16 x 720P @ 30; 32 x D1 @ 30 |
| Monitor Output | HDMI (4K~ 720p); VGA (1080p ~ 720P) |
| Synchronous Playback | 32 channels |
| Network | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Bandwidth | Incoming – 160Mbps Outgoing – 64Mbps |
| Remote Users | 128 |
| General | |
| Network Interface | 1 – RJ45, 10M/100M/1000M, Self-adaptive Ethernet |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm Interface | 16ch – Inputs; 4ch - Output |
| PoE Interface | 16 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 200W total |
| Audio Interface | 1ch RCA Input / Output |
| Corridor Mode | Record / Playback Multiple Cameras Simultaneously |
| Hard Disk | 4 SATA, up to 10TB each: total 40TB |
| Power | 100-240VAC; 15W Consumption (w/o HDD) |
| Operating Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Rack Mountable | Yes; rack ears are included |
| Dimensions (WxDxH) | 400 × 362 × 74mm (15.7 × 14.2 × 2.9") |
| Weight (w/o HDD) | 5kg（11.02lb) |
| Conformity Certifications | FCC, CE (UL – Power Supply only) |
