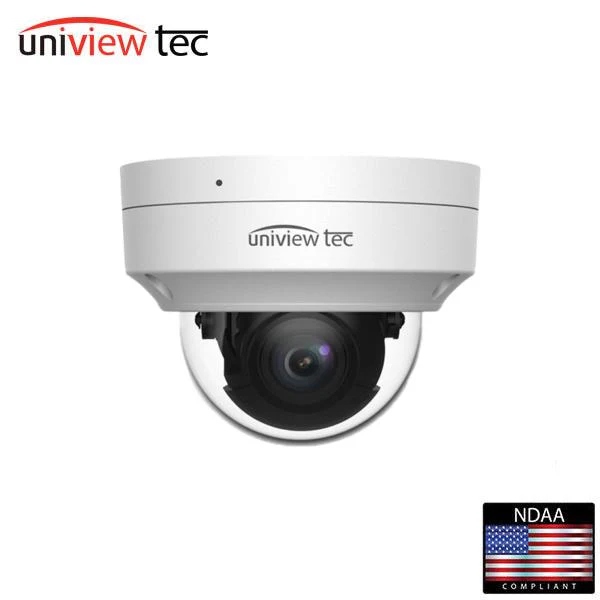

Uniview Tec / UVT / IPV5E212MX / Dome Camera / IP / 5MP / 2.8-12mm Verifocal Lens / True Day-Night / WDR / 40m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 5MP, 2880 x 1620 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsOne-way Audio w/ built-in microphone, Corridor View, Backlight Compensation, 3D DNR (Digital Noise Reduction)Dual Video Streams, ONVIF Profile Series CompliantPoE & 12VDC Power Options and Optional Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal HousingSupported by uniview tec Guard Station Software and Guard Viewer Mobile Appās for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | 2.8~12 mm, varifocal automatic focusing and motorized zoom lens |
| Angle of View (H x V) | 108.79Ā° ~ 33.23Ā° x 56.9Ā° ~ 18.33Ā° (Wide ~ Tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Signal /Noise Ratio | 52dB |
| IR LED Range | Up to 40m (131 ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 5MP (2880 x 1620) @ 25fps Sub: 720P (1280 x 720) @ 30fps |
| HLC, BLC, Digital Defog, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Local Edge Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter/Leave Area Detection |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Power consumption: Max 7.5W |
| Dimensions (Ć x H) & Weight | ?128 x 100mm (Ć5.0 x 3.9ā); 0.65kg (1.43lb) |
| Audio I/O & Compression | 1 / 0, w/ built-in Mic; G.711 Compression |
| Operating Temperature & Humidity |
-30Ā°C ~ +60Ā°C (-22Ā°F ~ 140Ā°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10; CE, FCC |
