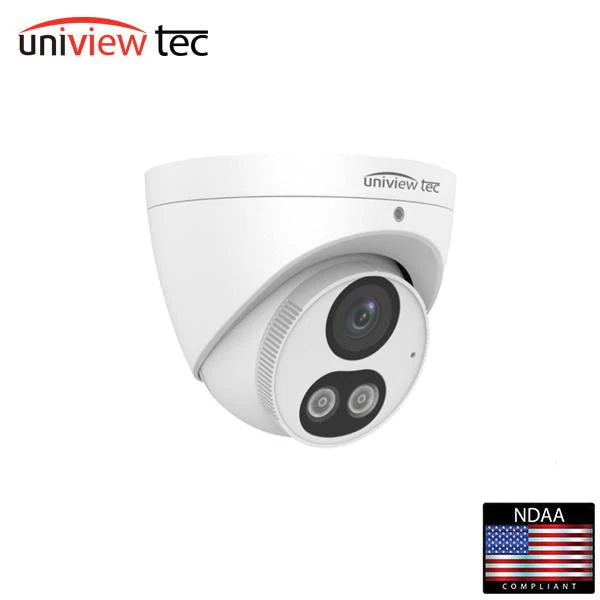

Uniview Tec / UVT / IPT5C28X / Eyeball Camera / IP / 5MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / WDR / 30m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 5MP, 2880 x 1620 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsColor Hunter technology with White LEDās ensures 24-hour full-color images up to 98 feet2.8mm fixed lens, TRUE Day/Night and WDR functionality for all Lighting ConditionsOne-way Audio with built-in Mic, Corridor, Backlight Compensation and 3D DNR (Digital Noise Reduction)Triple Video Streams & ONVIF Profile S CompliantIntelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehiclesPoE & 12VDC Power Options and Built-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing, and Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile Appās for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | 2.8mm @ F1.0 |
| Angle of View (H x V) | 102.0Ā° x 53.4Ā° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.001 Lux (F1.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| White LED Range | Up to 30m (98 ft) |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main Stream: 5MP (2880 Ć 1620) @ 30fps Sub Stream: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 Ć 576) @ 30fps |
| HLC, BLC, Defog, Corridor 9:16 Mode | Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF Profile S, API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection |
| Local Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/- 25%,, PoE (IEEE802.3 af); Power consumption: Max 7.5W |
| Audio | 1 / 0; G.711 |
| Dimensions (L x W x H) & Weight | ?110.5 x 94.1mm (Ć4.4 x 3.7ā); 0.44kg (0.97lb) |
| Operating Temperature & Humidity |
-30Ā°C ~ +60Ā°C (-22Ā°F ~ 140Ā°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
