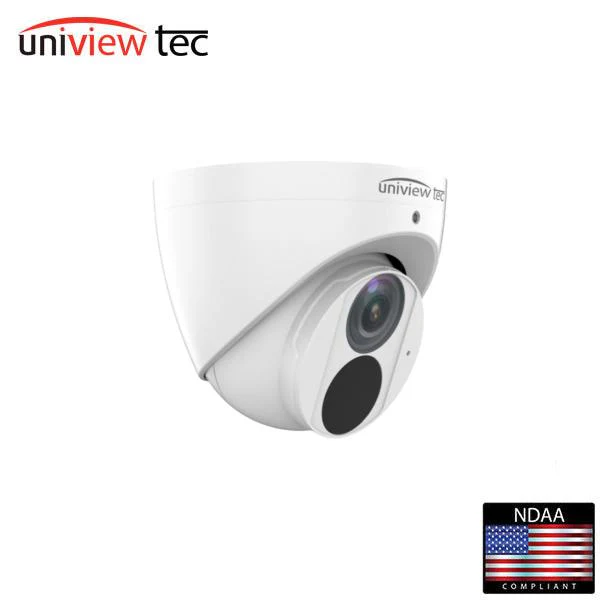

Uniview Tec / UVT / IPT528AIX / Eyeball Camera / IP / 5MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR

Uniview Tec / UVT / IPT528AIX / Eyeball Camera / IP / 5MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR

Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesLightHunter illumination technology ensures ultra-high color image up to 0.003 Lux (F1.6)Exceptional Video Quality with 5MP, 2880 x 1620 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet2.8mm fixed lens, Triple Video Streams, ONVIF Profile S CompliantTRUE Day/Night and WDR functionality for all Lighting ConditionsOne-way Audio w/ built-in microphone, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)Triple Video Streams, ONVIF Profile S Compliant; PoE & 12VDC Power OptionsIntelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehiclesBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing, Optional Wall and Pendant Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile Appā€™s for iPhone and Android Devices



    Camera
    Sensor 1/2.7", progressive scan , 5 megapixel, CMOS
    Lens 2.8mm@ F1.6
    Angle of View (H x V) 96.1Ā° x 55.3Ā°
    Shutter Auto/Manual, 1 ~ 1/100000 s
    Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
    Day/Night IR-cut filter with auto switch (ICR)
    Digital noise reduction 2D/3D DNR
    IR LED Range Up to 30m (98 ft) IR range
    WDR 120dB
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High Profile
    Maximum Frame Rate / Stream Main Stream: 5MP (2880 x 1620) @ 30 fps; 4MP
    (2560 x 1440) @ 30 fps; 3MP (2304x 1296) @ 30
    fps; 2MP (1920 x 1080) @ 30 fps
    Sub: 720P (1280 x 720) @ 30fps
    Third Stream: D1 (720 Ɨ 576) @ 30fps
    HLC, BLC, Flip, 9:16 Corridor, Defog Supported
    OSD, Privacy Mask, Motion Detection & ROI Up to 8 areas
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
    RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
    HTTPS, SMTP, SSL, SNMP
    Compatible Integration ONVIF (Profile S, Profile T), API
    Network RJ45, 10M/100M Base-TX Ethernet
    Intelligent Perimeter Protection Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection
    General
    Power 12VDC +/- 25%, PoE (IEEE802.3 af); Max 4W
    Dimensions (Ƙ x H) & Weight ?110.5 x 94.1mm (Ƙ4.4 x 3.7ā€); 0.425kg (0.93lb)
    Audio I/O & Compression 1 / 0, w/ built-in microphone; G.711
    Operating Temperature &
    Humidity    		 -30Ā°C ~ +60Ā°C (-22Ā°F ~ 140Ā°F); Humidity: 10%~
    95% RH (non-condensing)
    Conformity Certifications IP67, CE, FCC


    Downloads

    • Spec Sheet
    • Manual
