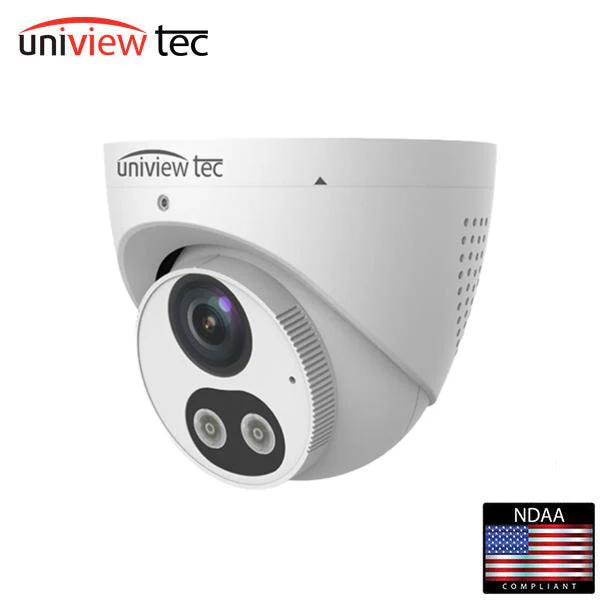

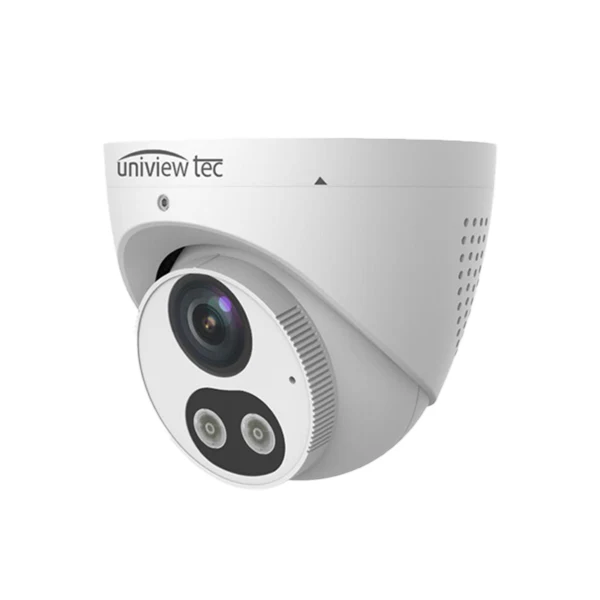

Uniview Tec / UVT / IPT4K28TAIX / Eyeball Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR

Uniview Tec / UVT / IPT4K28TAIX / Eyeball Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR

Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4K (8MP), 3840 x 2160 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet2.8 fixed, wide-angle lens and Two-way Audio with Built-in Microphone & SpeakerTRUE Day/Night and WDR functionality for all Lighting ConditionsBacklight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction),Triple Video Streams, ONVIF Profile S CompliantSupports sound and light alarm linkage with Smart Intrusion Prevention, such as Cross Line, Intrusion, Enter / Leave Area Detection, and othersIP67 Weather Resistant Housing and PoE & 12VDC Power Options3-Way Axis and Optional Wall, Junction Box and Pole Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GBSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device



    Camera
    Sensor 1/2.8” 8MP, progressive scan CMOS
    Minimum illumination Color: 0.0025 lux (F1.6, AGC ON); 0 lux with IR on
    True Day / Night IR-cut filter with auto switch (ICR)
    Shutter Auto / Manual, 1 ~ 1/100000s
    Adjustment angle Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotate: 0° ~ 360°
    WDR 120dB
    S/N >56dB
    Lens
    Lens [email protected]
    Iris Fixed
    Field of View (H) 106.7°
    Field of View (V) 57.1°
    Field of View (D) 115.7°
    DORI
    DORI Distance

    Detect (m)

    86.9

    Observe (m)

    34.8

    Recognize (m)

    17.4

    Identify (m)

    8.7
    Illuminator
    IR Range Up to 30m (98ft) IR range
    Wavelength 850nm
    White Light Range Up to 30m (98ft) IR range
    IR On/Off Control Auto/Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main profile, High profile
    Frame Rate Main Stream: 8MP (3840 x 2160), Max 20fps; 5MP (3072 x 1728), Max 30fps; 4MP (2560 x 1440), Max 30fps; 1080P (1920 x1080), Max 30fps;

    Sub Stream: 1080P (1920 x 1080), Max 30fps;720P (1280 x 720), Max 30fps; 640 x 360, Max 30fps; D1 (720 x 576), Max
    30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps;

    Third Stream: D1 (720 x 576), Max 30fps; 640 x 360,Max 30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    U-code Support
    OSD Up to 8 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Video Stream Triple streams
    White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
    Digital Noise Reduction 2D / 3D DNR
    Smart IR Support
    Flip Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
    Dewarping Support
    HLC Support
    BLC Support
    Defog Digital Defog
    Intelligence
    Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
    Recognition Face capture
    Statistical Analysis People counting, support people flow counting and crowd density monitoring
    Events
    Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
    General Function Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
    Audio
    Audio Compression G.711
    Audio Bitrate 64 Kbps
    Two-way audio Support
    Built-in Alarm Audio Support
    Suppressione Support
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR, NAS(NFS)
    Network
    Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,
    802.1x, SNMP, QoS, RTMP,SSL / TLS, SSH
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
    User/Host Up to 32 users. 2 user levels: administrator and common user
    Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,
    Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    Client Guard Station, Guard Viewer
    Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;
    Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
    Interface
    Audio I/O N/A
    Alarm I/O N/A
    Built-in Mic Support
    Built-in Speaker Support
    Network 1 * RJ45 10M/100M Base-TX Ethernet
    General
    Power DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 8.0W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions (Ø × H) ?111 x 95mm (?4.4” x 3.7”)
    Weight 0.45kg (0.992lb)
    Material Metal + Plastic
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
    Surge Protection 4KV
    Conformity Certifications IP67, CE, FCC


    Downloads

    • Spec Sheet
    • Manual
    $219.00
    Uniview Tec / UVT / IPT4K28TAIX / Eyeball Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR—
