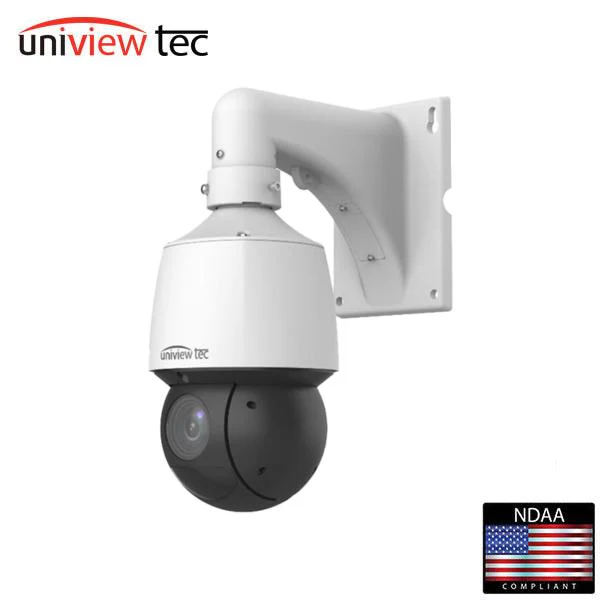

Uniview Tec / UVT / IPCSD425X / PTZ Camera / IP / 4MP / 4.8-120mm Optical Lens / WDR / Lighthunter / 100m IR

Uniview Tec / UVT / IPCSD425X / PTZ Camera / IP / 4MP / 4.8-120mm Optical Lens / WDR / Lighthunter / 100m IR

Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesLightHunter illumination technology ensures ultra-high quality with 4MP, 2688 x 1520 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and StorageUltra-Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 328 Feet4.8 ~ 120mm, 25x Optical motorized zoom and automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsTwo-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)High Speed up to 240°/sec and up to 1024 Preset PositionsTriple Video Streams; ONVIF Profile Series Compliant; & Intelligent perimeter protection with Smart Intrusion Detection Analytics IP67 / IK10 Weather / Vandal Resistant Housing and PoE & 12VDC Power OptionsIncludes Wall Mount, with optional Junction Box, Pole & Corner Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GBSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device



    Camera
    Sensor 1/2.8” 4MP, progressive scan CMOS
    Minimum illumination Color: 0.003 lux (F1.5, AGC ON); 0 lux with IR on
    True Day / Night IR-cut filter with auto switch (ICR)
    Shutter Auto / Manual, 1 ~ 1/100000s
    WDR 120dB
    S/N >56dB
    Lens
    Lens 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens
    Optical / Digital Zoom 25 / 16
    Iris Auto; F1.5 ~ F3.8
    Field of View (H) 52.20°~2.74°
    Field of View (V) 30.81°~1.54°
    Field of View (D) 64.20°~3.23°
    DORI
    DORI Distance

    Lens (mm)

    4.8

    120

    Detect (m)

    119.3 (391.2ft)

    2475.0 (8120.1ft)

    Observe (m)

    47.7 (156.5ft)

    990.0 (3248.0ft)

    Recognize (m)

    23.9 (78.2ft)

    495.0 (1624.0ft)

    Identify (m)

    11.9 (39.1ft)

    247.5 (812.0ft)
    Illuminator
    IR Range Up to 100m (328ft) IR rang
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    Frame Rate Main Stream: 4MP (2688 x 1520), Max 30fps
    Sub Stream: 2MP (1920 x 1080), Max 30fps
    Third Stream: D1 (720 x 576), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    U-code / ROI Support
    OSD Up to 8 OSDs
    Privacy Mask 24 areas, up to 4 areas per scene
    Video Stream Triple streams
    White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
    Digital Noise Reduction 2D / 3D DNR
    Smart IR Support
    Flip Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
    HLC Support
    BLC Support
    Defog Digital Defog
    Intelligence
    Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
    Face Capture Support, Face attributes: Gender, Age range, Glasses, Mask
    People Counting Support people flow counting and crowd density monitoring
    Events
    Basic Detection Motion detection, Audio detection, Tampering Alarm
    Auto Tracking Support
    General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
    User Authentication
    Audio
    Audio Compression G.711U, G.711A
    Audio Bitrate 64 Kbps
    Two-way audio Support
    Suppressione Support
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR, NAS(NFS)
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,
    SNMP, QoS, RTMP,SSL/TLS
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
    User/Host Up to 32 users. 2 user levels: administrator and common user
    Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    Client Guard Station, Guard Viewer
    Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
    Pan & Tilt
    Pan Range 360° (endless)
    Pan Speed 0.1°/s ~ 200°/s
    Preset speed: 240°/s
    Tilt Range –15° ~ 90° (auto reverse)
    Tilt Speed 0.1°/s ~ 120°/s
    Preset speed: 200°/s
    Number of Presets 1024
    Preset Patrol 16 patrols, up to 64 presets for each patrol
    Route Patrol 16 patrols, up to 32 actions for each patrol
    Recorded Patrol 16 patrols, up to 128 actions for each patrol
    Patrol Stay Time 15s~1800s
    Preset Image Freeze Support
    Home Position Support
    Interface
    Audio I/O 1 / 1
    Alarm I/O 2 / 1
    Serial Port 1 x RS485
    Network 1 x RJ45 10M/100M Base-TX Ethernet
    Video Output 1 x BNC
    General
    Power DC 12V (±25%, 3A), PoE (IEEE 802.3at); Power consumption: Max 21W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions (Ø × H) Ø166 x 295mm (Ø6.5” x 11.6”)
    Weight 3.05kg (6.72lb
    Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing)
    Surge Protection 4KV
    Conformity Certifications IP67, IK10, CE, FCC


    Downloads

    • Spec Sheet
    • Manual
    $238.52

    Original: $681.50

    -65%
    Uniview Tec / UVT / IPCSD425X / PTZ Camera / IP / 4MP / 4.8-120mm Optical Lens / WDR / Lighthunter / 100m IR—

    $681.50

    $238.52
