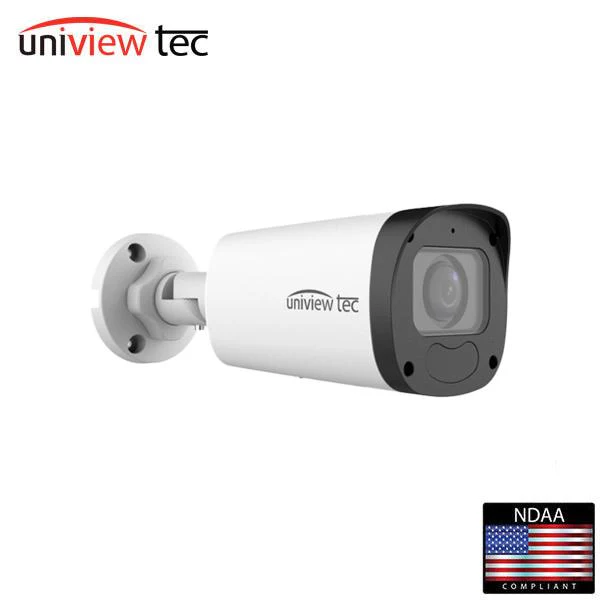

Uniview Tec / UVT / IPB5E212MX / Bullet Camera / IP / 5MP / 2.8-12mm Varifocal Lens / True Day-Night / WDR / 50m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 5MP, 2880 x 1620 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsOne way Audio w/ built in microphone, Corridor Mode, Backlight Compensation, 3D DNR (Digital Noise Reduction)ONVIF Profile S Compliant, PoE & 12VDC Power OptionsSmart Behavior Video Analytics such as Intrusion, Tampering, Audio and Human Body DetectionBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing and Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | 2.8~12 mm, varifocal automatic focusing and motorized zoom lens |
| Angle of View (H x V) | 108.79° ~ 33.23° x 56.9° ~ 18.33° (Wide ~ Tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Signal / Noise Ratio | >52dB |
| IR LED Range | Up to 50m (164ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 5MP (2880 x 1620) @ 25fps Sub: 720P (1280 x 720) @ 30fps |
| HLC, BLC, Defog, Flip, 9:16 Corridor |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Behavior Video Analytics | Intrusion, Human Body Detection, Motion detection, Tampering alarm |
| Local & Network Storage | Micro-SD, up to 256GB / Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/- 25%; PoE (IEEE802.3 af); Power consumption: Max 8.5W |
| Audio I/O & Compression | 1 / 0, w/ built-in Microphone; G711 |
| Dimensions (L x W x H) & Weight | 206 × 74 × 74mm (8.1 × 2.9 × 2.9”); 0.55kg (1.2lb) |
| Operating Temperature & Humidity | -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
Downloads
- Spec Sheet
- Manual
