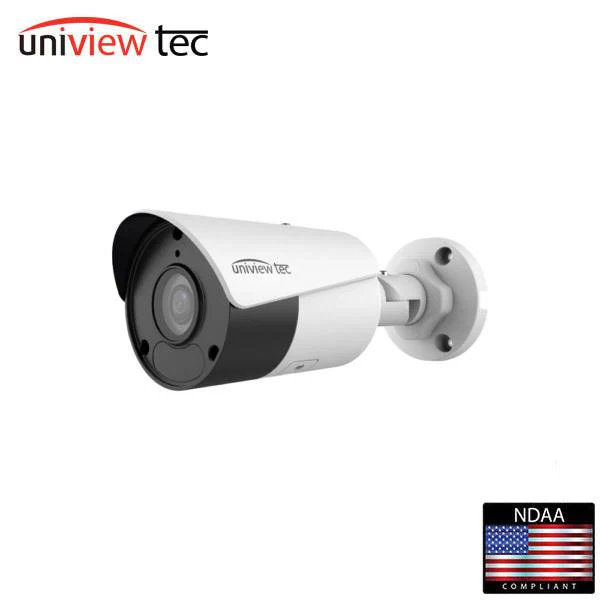

Uniview Tec / UVT / IPB4KE28X / Bullet Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / Lighthunter / 50m IR

Uniview Tec / UVT / IPB4KE28X / Bullet Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / Lighthunter / 50m IR

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines Exceptional Video Quality with 4K (8MP), 3840 x 2160 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet2.8 fixed, wide-angle lens and One-way Audio with Built-in Microphone TRUE Day/Night and WDR functionality for all Lighting ConditionsBacklight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)Dual Video Streams & ONVIF Profile S CompliantPowerful Video Analytics such as Intrusion, Tampering, Audio and Human Body DetectionPoE & 12VDC Power Options, & Built-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing, 3-Way Axis & Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices



    Camera
    Sensor 1/2.7", progressive scan , 8 megapixel, CMOS
    Lens 2.8mm @ F1.6
    Angle of View (H x V) 112.9° x 59.1°
    Shutter Auto/Manual, 1 ~ 1/100000 s
    Minimum Illumination Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR
    Day/Night IR-cut filter with auto switch (ICR)
    Digital noise reduction 2D/3D DNR
    IR LED Range Up to 50m (164ft) IR range
    WDR 120dB
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High Profile
    Maximum Frame Rate / Stream Main: 8MP (3840 ×2160) @ 20 fps
    Sub: 1080P (1920 x 1080): @ 30 fps
    Video Bit Rate 128 Kbps~16 Mbps
    HLC, BLC, 9:16 Corridor, Flip,
    Defog    		 Supported
    OSD, Privacy Mask, Motion
    Detection & ROI    		 Up to 8 areas
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
    RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
    HTTPS, SMTP, SSL, QoS
    Compatible Integration ONVIF (Profile S, G, T), API
    Local & Network Storage Micro-SD, up to 256GB; ANR
    Network RJ45, 10M/100M Base-TX Ethernet
    Video Analytics Intrusion, Human Body Detection, Motion
    detection, Tampering alarm
    General
    Power 12VDC +/- 25%, PoE (IEEE802.3 af); Max 6.5W
    Dimensions (L x W x H) & Weight 189 × 73 × 71mm (7.5 × 2.9 × 2.8”);
    0.45kg (0.99lb)
    Audio 1 / 0, w/ built-in Mic; G.711
    Adjustment Range Pan: 0°~360° Tilt: 0° ~ 90° Rotation: 0°~360°
    Operating Temperature &
    Humidity    		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
    95% RH (non-condensing)
    Conformity Certifications P67, CE, FCC


    Downloads

    • Spec Sheet
    • Manual
    $62.65

    Original: $179.00

    -65%
    Uniview Tec / UVT / IPB4KE28X / Bullet Camera / IP / 8MP / 2.8mm Fixed Lens / True Day-Night / WDR / Lighthunter / 50m IR—

    $179.00

    $62.65

    Product Information

    Shipping & Returns

    Description

    Fully Adheres to National Defense Authorization Act (NDAA) Guidelines Exceptional Video Quality with 4K (8MP), 3840 x 2160 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet2.8 fixed, wide-angle lens and One-way Audio with Built-in Microphone TRUE Day/Night and WDR functionality for all Lighting ConditionsBacklight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)Dual Video Streams & ONVIF Profile S CompliantPowerful Video Analytics such as Intrusion, Tampering, Audio and Human Body DetectionPoE & 12VDC Power Options, & Built-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing, 3-Way Axis & Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices



      Camera
      Sensor 1/2.7", progressive scan , 8 megapixel, CMOS
      Lens 2.8mm @ F1.6
      Angle of View (H x V) 112.9° x 59.1°
      Shutter Auto/Manual, 1 ~ 1/100000 s
      Minimum Illumination Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR
      Day/Night IR-cut filter with auto switch (ICR)
      Digital noise reduction 2D/3D DNR
      IR LED Range Up to 50m (164ft) IR range
      WDR 120dB
      Video Compression Ultra 265, H.265, H.264, MJPEG
      H.264 code profile Baseline profile, Main Profile, High Profile
      Maximum Frame Rate / Stream Main: 8MP (3840 ×2160) @ 20 fps
      Sub: 1080P (1920 x 1080): @ 30 fps
      Video Bit Rate 128 Kbps~16 Mbps
      HLC, BLC, 9:16 Corridor, Flip,
      Defog      		 Supported
      OSD, Privacy Mask, Motion
      Detection & ROI      		 Up to 8 areas
      Network
      Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
      RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
      HTTPS, SMTP, SSL, QoS
      Compatible Integration ONVIF (Profile S, G, T), API
      Local & Network Storage Micro-SD, up to 256GB; ANR
      Network RJ45, 10M/100M Base-TX Ethernet
      Video Analytics Intrusion, Human Body Detection, Motion
      detection, Tampering alarm
      General
      Power 12VDC +/- 25%, PoE (IEEE802.3 af); Max 6.5W
      Dimensions (L x W x H) & Weight 189 × 73 × 71mm (7.5 × 2.9 × 2.8”);
      0.45kg (0.99lb)
      Audio 1 / 0, w/ built-in Mic; G.711
      Adjustment Range Pan: 0°~360° Tilt: 0° ~ 90° Rotation: 0°~360°
      Operating Temperature &
      Humidity      		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
      95% RH (non-condensing)
      Conformity Certifications P67, CE, FCC


      Downloads

      • Spec Sheet
      • Manual
