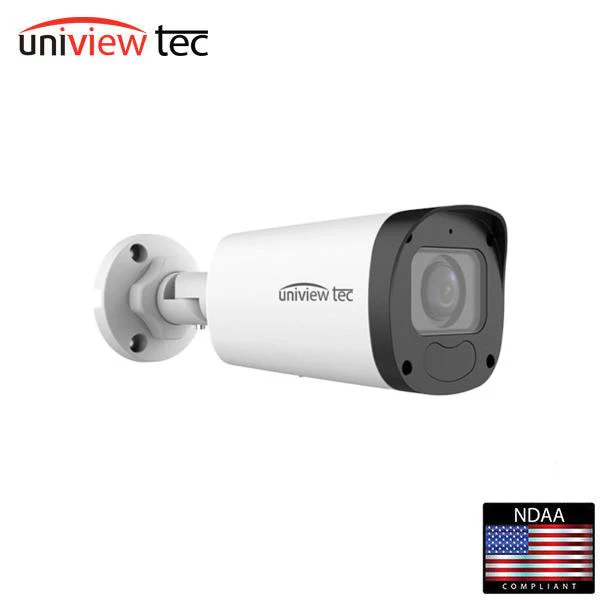

Uniview Tec / UVT / IPB4E212MX / Bullet Camera / IP / 4MP / 2.8-12mm Varifocal Lens / True Day-Night / WDR / Lighthunter / 50m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4MP, 2688 x 1520 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsOne way Audio w/ built in microphone, Corridor View, Backlight Compensation, 3D DNR (Digital Noise Reduction)Dual Video Streams; ONVIF Profile Series CompliantSmart Intrusion Detection including Cross Line & Motion Detection and TamperingPoE & 12VDC Power OptionsBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing, Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8~12 mm, varifocal automatic focusing and motorized zoom lens |
| Angle of View (H) | 102.79° ~ 30.86 x 54.5° ~ 17.49° (Wide ~ Tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.0031 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Signal / Noise Ratio | >52dB |
| IR LED Range | Up to 50m (164ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas Network |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Local Edge Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| Smart Intrusion Prevention | Cross Line, Motion Detection; Tampering, Audio |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| General | |
| Power | 12VDC +/- 25%; PoE (IEEE802.3 af); Power consumption: Max 8.5W |
| Audio I/O & Compression | 1 / 0, w/ built-in Mic; G711 compression |
| Dimensions (L x W x H) & Weight | 206 × 74 × 74mm (8.1 × 2.9 × 2.9in) 055kg (1.2lb) |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
Downloads
- Spec Sheet
- Manual
Original: $219.00
-65%$219.00
$76.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4MP, 2688 x 1520 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsOne way Audio w/ built in microphone, Corridor View, Backlight Compensation, 3D DNR (Digital Noise Reduction)Dual Video Streams; ONVIF Profile Series CompliantSmart Intrusion Detection including Cross Line & Motion Detection and TamperingPoE & 12VDC Power OptionsBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing, Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8~12 mm, varifocal automatic focusing and motorized zoom lens |
| Angle of View (H) | 102.79° ~ 30.86 x 54.5° ~ 17.49° (Wide ~ Tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.0031 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Signal / Noise Ratio | >52dB |
| IR LED Range | Up to 50m (164ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas Network |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Local Edge Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| Smart Intrusion Prevention | Cross Line, Motion Detection; Tampering, Audio |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| General | |
| Power | 12VDC +/- 25%; PoE (IEEE802.3 af); Power consumption: Max 8.5W |
| Audio I/O & Compression | 1 / 0, w/ built-in Mic; G711 compression |
| Dimensions (L x W x H) & Weight | 206 × 74 × 74mm (8.1 × 2.9 × 2.9in) 055kg (1.2lb) |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
