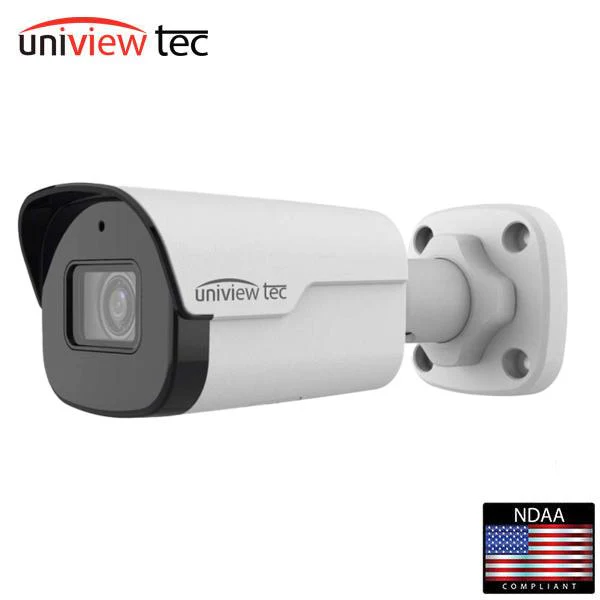

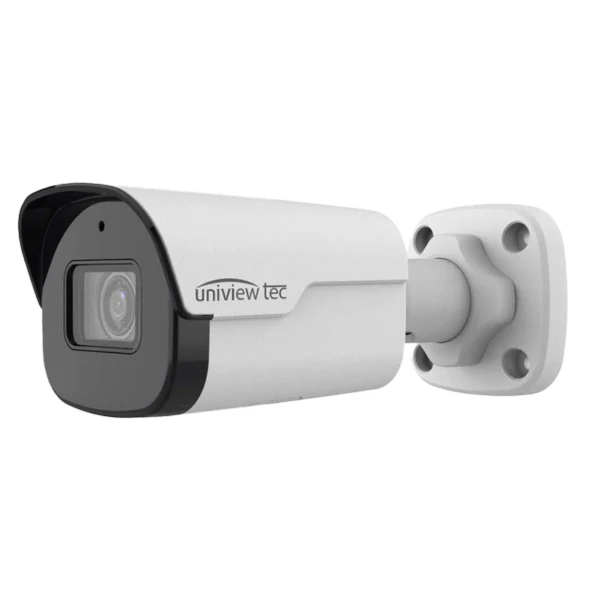

Uniview Tec / UVT / IPB428AIX / Bullet Camera / IP / IP / 4 MP / 2.8mm Fixed Lens / True Day-Night / WDR / Lighthunter / 40m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesLightHunter Technology for ultra-high quality color video images in low light applications with up 4MP, 2688 x 1520 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet2.8 fixed, wide-angle lens and One-way Audio with Built-in MicrophoneTRUE Day/Night and WDR functionality for all Lighting ConditionsBacklight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)Triple Video Streams & ONVIF Profile S CompliantIntelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehiclesPoE & 12VDC Power Options, & Built-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing, 3-Way Axis and Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8 mm@ F1.6 |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| Smart IR LED Range / Wavelength | Up to 40m (131ft) IR range / 850nm |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 x 576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Line Crossing, Intrusion & Leave Area detection w/ Smart Intrusion Prevention Technology for False Alarm Prevention |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
| Power | 12VDC, PoE (IEEE802.3 af); Power consumption: Max 4W |
| Audio | 1 / 0, w/ built-in Mic; G.711 |
| Dimensions (L x W x H) & Weight | 155.9 × 63.1 × 62.7mm (6.1 × 2.5 × 2.5”); 0.42kg (0.93lb) |
| Operating Temperature & Humidity | -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
