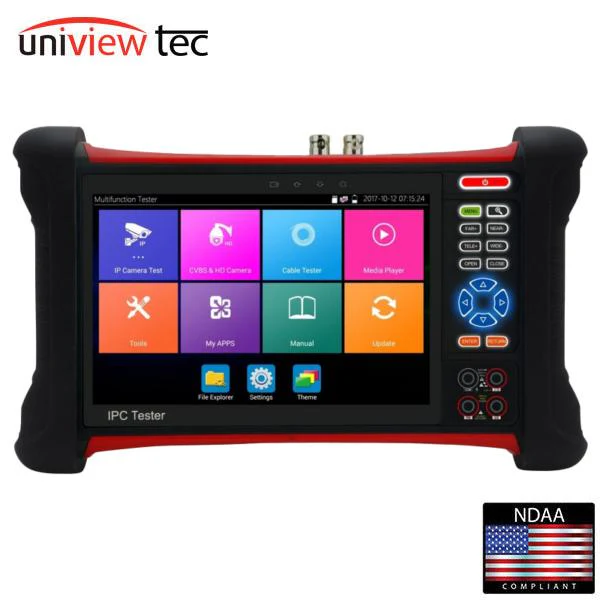

Uniview Tec / UVT / 4KTESTMON / Multi-Function Video Test Monitor

Uniview Tec / UVT / 4KTESTMON / Multi-Function Video Test Monitor

Designed for installation and maintenance of IP and Analog camerasComposite video (CVBS, TVI, CVI, AHD) and IP video input support7ā€ Retina Touch-Screen, 1920 x 1200 resolutionH.265 & H.264 standards support, up to 4K resolutionRJ45 Ethernet cable, video level meter and cable trace test supportPoE power voltage, PING and IP address searching supportHDMI input and outputONVIF Profile S CompliantRechargeable lithium battery and external 12VDC power supplyWi-Fi connectivity supportAudio, PTZ control and color bar generator support



    Video Test Monitor
    Monitor 7ā€ retina touch screen
    IP Video 1 - RJ-45, 10M/100M auto adjust
    Analog Video 1 x BNC input: CVBS, TVI, CVI, AHD
    1 x BNC output
    Serial Interface 1 x RS-485
    HDMI 1 x input and 1 x output
    PoE 1 x RJ45, 48V output, maximum 24W
    Camera Power 12VDC, 2A output power to camera
    Audio 1 x RCA input and 1 x RCA output
    Micro SD Slot 8GB card included
    Power Supply 12VDC, 2A
    Operating Temperature -10Ā°C ~ + 50Ā°C (4Ā°F ~ 122Ā°F)
    Operating Humidity 30% ~ 90% RH
    Dimensions 255 x 160 x 46mm (10 Ɨ 6.3 Ɨ 1.8")
    Weight .95kg (2.1lb)


    Downloads

    • Spec Sheet
    • Manual
    $226.80

    Original: $648.00

    -65%
    Uniview Tec / UVT / 4KTESTMON / Multi-Function Video Test Monitorā€”

    $648.00

    $226.80
