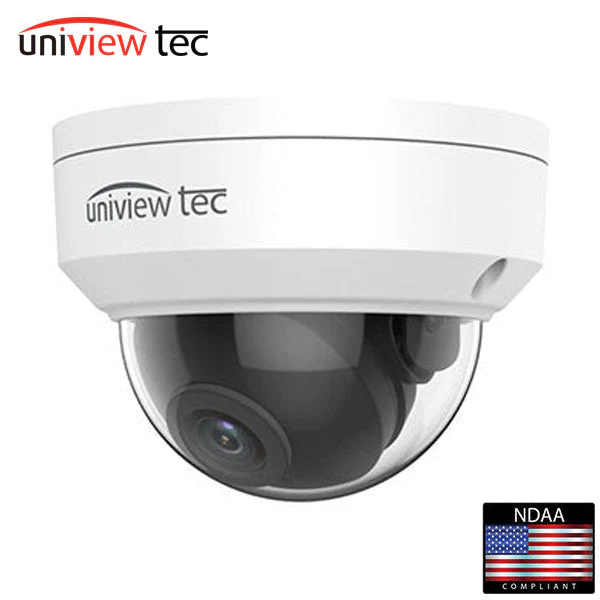

Uniview Tec / UVT / IPV428X / Vandal Dome Camera / 4MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
• Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
• Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
• 2.8mm fixed lens
• TRUE Day/Night and WDR functionality for all Lighting Conditions
• Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
• Triple Video Streams and ONVIF Profile S Compliant
• Powerful Video Analytics such as Intrusion, Tampering, Audio and Human Body Detection
• PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
• Built-in Micro-SD Card Slot enables local storage up to 256GB
• 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
• Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices


Camera
Sensor	1/3", progressive scan , 4 megapixel, CMOS
Lens	2.8mm @ F2.0
Angle of View (H x V)	95.8° x 55.2°
Shutter	Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination	Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
IR LED Range & Wavelength	Up to 30m (98 ft) IR range; 850nm
WDR	120dB
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream	Main: 4MP (2688 x 1520) @ 30fps; or (2560 x 1440) @ 30fps; or 3MP (2304 x 1296) @ 30fps Sub: 4CIF (704 x 576) @ 30fps Third Stream: CIF (352 × 288) @ 30fps
HLC, BLC, Defog, Flip, 9:16 Corridor	Supported
OSD, Privacy Mask, Motion Detection & ROI	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration	ONVIF (Profile S, G, T), API
Network	RJ45, 10M/100M Base-TX Ethernet
Behavior Video Analytics	Intrusion, Human Body Detection, Motion, Tampering and Audio Detection
Local and Network Storage	Micro-SD, up to 256GB / Automatic Network Replenishment (ANR)
General
Power	12VDC +/-25%, PoE (IEEE802.3 af); Power consumption: Max 5.5W
Dimensions (Ø x H) & Weight	Φ108.7 x 81 mm (Ø4.3” x 3.2”); 0.45kg (0.99lb)
Operating Temperature & Humidity	-35°C ~ +60°C (-31°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
Conformity Certifications	IP67, IK10; CE, FC



Downloads:

• Spec Sheet
