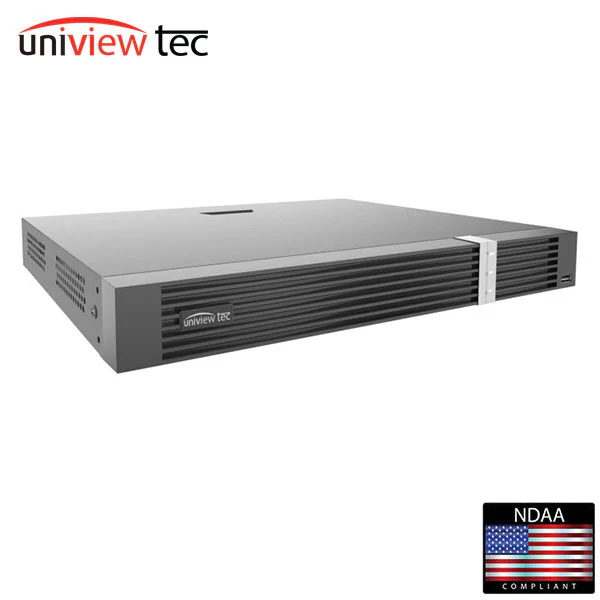

Uniview Tec / UVT / HNRXAI16 / 16ch Analog / 8ch IP / 8 PoE / 8MP Resolution / H.265 NVR - Optional HDD

Key Features

• 16 analog x 8 IP Cameras, Hybrid network recorder with H.265 Compression
• Simultaneously supports 16 Analog (AHD, TVI, CVI and CVBS) and 8 IP Video Inputs with adaptive access (or up to 24 IP channels if no analog cameras are connected)
• Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
• Supports recording of up to 8MP (4K), 3840 x 2160 Resolution Images > Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
• HDMI display resolution up to 8MP (4K)
• Supports Audio I/O and PTZ Camera control
• Easy Plug and Play Functionality with Automatic Device Discovery and Display
• Supports 2 SATA HDD up to 10TB each for 20TB total
• ONVIF Profile S Compliant for IP Cameras
• Long transmission distance over RG-6 coax cable up to 2000ft (600m)
• Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

Video
IP Camera Inputs	16 channels
IP Camera Inputs	8 channels (up to 24ch if no analog connected)
Video Formats	H.265, H.264
Recording Video Resolution	AHD - 8MP; TVI - 8MP; CVI - 8MP; CVBS - 960H (720TVL); IP - 8MP
Playback Video Capability (fps)	2 x 8MP @30; 2 x 6MP @30; 3 x 5MP @30; 4 x 4MP @30; 4 x 3MP @30; 6 x 3MP @25; 8 x 1080p @30; 16 x 720P @ 30
Monitor Output	1 x HDMI, 2160p; 1 x VGA, 1080p; 1 x CVBS
Synchronous Playback	16 channels
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Bandwidth	Incoming – 72Mbps; Outgoing – 80Mbps
Remote Users	128
General
Network Interface	1 x RJ45, 10M/100M/1000M, self-adaptive Ether.
USB Interface	Front panel: 1 x USB2.0; Rear panel: 1 x USB3.0
Serial Interface	1 x RS485, Terminal Strip
Audio Interface	1ch / 1ch, RCA; 4 / 1 Terminal Strip
Hard Disk	2 SATA, up to 10TB each
Power	12VDC; 12W Consumption (w/o HDD)
Operating Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH (non-condensing)
Rack Mountable	Yes; see Accessories
Dimensions (WxDxH)	380 × 318 × 53.5mm (15 × 12.5 x 2.1")
Weight (w/o HDD)	2Kg ( 4.4lb )
RG-6 Coax Cable Transmission	Up to 1200ft w/ TVI, CVI; up to 2000ft w/ AHD
Conformity Certifications	FCC, CE (UL – Power Supply only)
