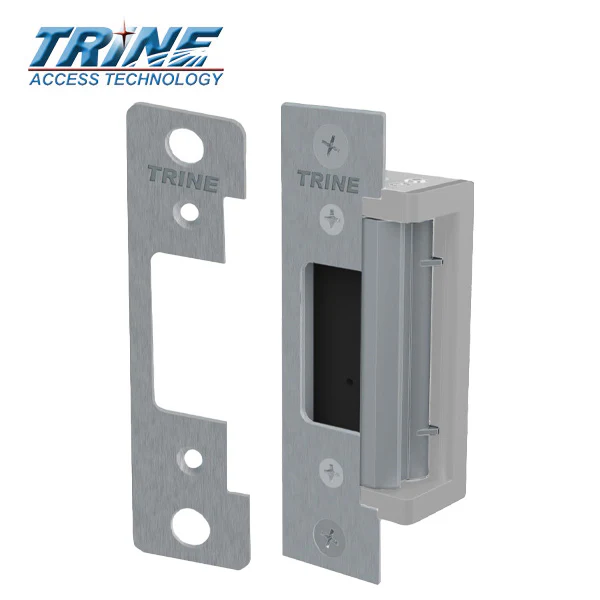

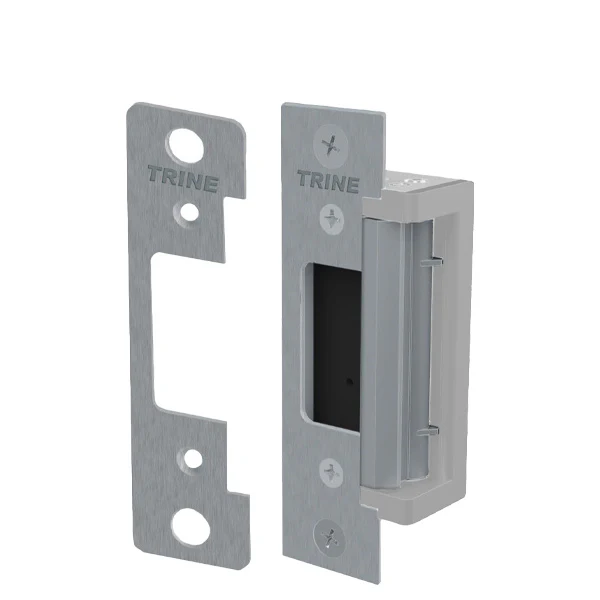

Trine - 4300 - Electric Strike - 4 Faceplates - Aluminium Finish - Grade 1

The Trine 4300 series electric strike kit is the versatile 4-7/8" solution for cylindrical and deadlatches.

Features:

• Tallest latch cavity in its class - at 2 - 13/16" the 4200 offers almost twice the latch height compared to the competition
• Poe friendly electric strike - 0.240 Amps at 12DC and 0.114 Amps at 24DC
• Runs cool all the time, no need of an external "pac" to reduce strike temperature under continuous duty
• Contains a one-piece locking mechanism with one solenoid -- less parts means less problems

Specifications:

Frame Material	Wood or Hollow Metal
Mounting	For Surface mount installations
locking state	fail-secure (power to unlock)
Product type	for use with surface mounted locks
max latch length - inches	maximum 3/4 inch throw
Pull strength - lbs	1000 - 1500 LBS
Voltage and duty INT	selectable 12/24V AC/DC int
Voltage and Duty CONT	Selectable 12/24V DC
UNSPSC code	31162407
Endurance	500,000 cycles
Static Strength	1,500 lbs
Dynamic Strength	70ft/lbs
Finish	Aluminium (ALUM)
Backset	1-1/16"



4300 Electrical Characteristics:

Voltage	Current Draw	Power Consumption	Resistance
12DC	.310 Amps	3.72 Watts	39 Ohms
24DC	.140 Amps	3.36 Watts	171 Ohms
12AC @50-60Hz	.280 Amps	3.36 Watts	39 Ohms
16AC @50-60Hz	.380 Amps	6.08 Watts	39 Ohms
24Ac @50-60Hz	.550 Amps	13.20 Watts	39 Ohms

When removing the connector and using the wires direct;

• Blue wire is common

• Red wire accepts 12DC & 12-16AC
• Brown Wire accepts 24DC

Package Includes:

• (1) 4300 Electric Strike mechanism
• (4) faceplates as shown
• (4) #12-24 x 1/2 inch Phillips mounting screws
• (2) #8-32 Faceplate mounting screws
• (2) Quick connect socket & wire assembly 12VDC & 24VDC version
• (2) Sealed Crimp Connectors
• (1) Frame Trim Skirt & (2) screws
• (2) Mounting tabs
