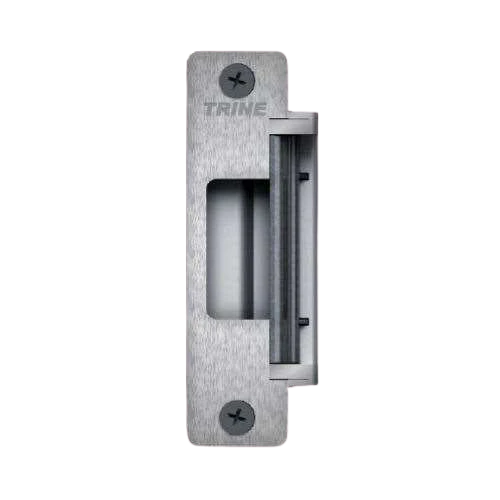

Trine - 4200CC7 - Dual Colored Electric Strike - 4 Faceplates - Aluminum & Dark Bronze - Grade 1

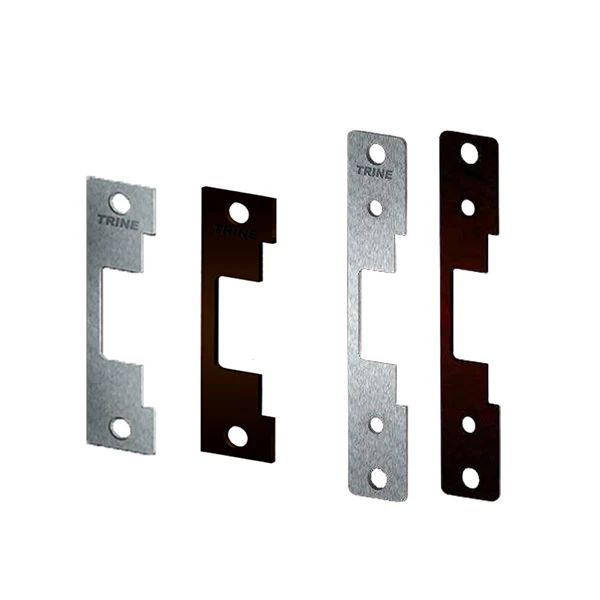

Dual colored electric strike with two faceplate lengths (includes pieces for a 32D/clear aluminum finish and a dark bronze finish) for use with cylindrical locks and deadlatches. Made especially for aluminum frames, and for use with wood fames

4200CC7-10B-32D Features:

• The only electric strike to have two different finishes in one box. Plus two strike plates for different cutouts. Allows you to match the two most popular frame finishes -- clear aluminum and dark bronze.

• Competitively priced - at or lower then competition models of the same class.

• Tallest Latch Cavity in it's Class - at 2 - 13/16" the 4200 offer's almost twice the latch height compared to the competition.

• Poe Freindly electric strike - 0.240 Amps at 12DC and 0.114 Amps at 24DC

• Runs Cool all the time, no need of an external 'pac' to reduce strike temperature under continuous duty.

• Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.

4200 Series Electrical Characteristics (Included, no external packs required):

When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.
