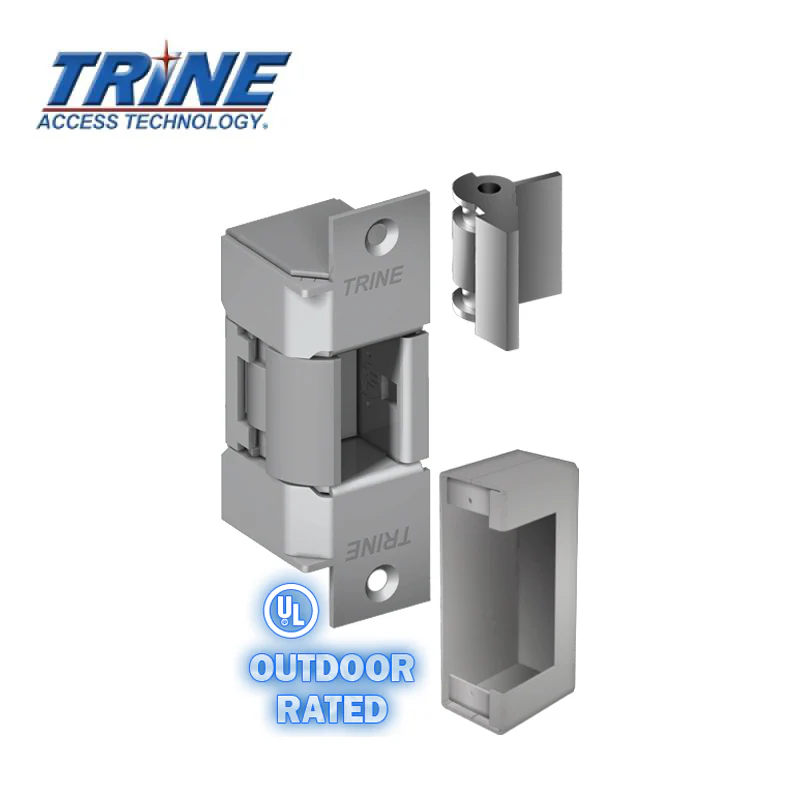

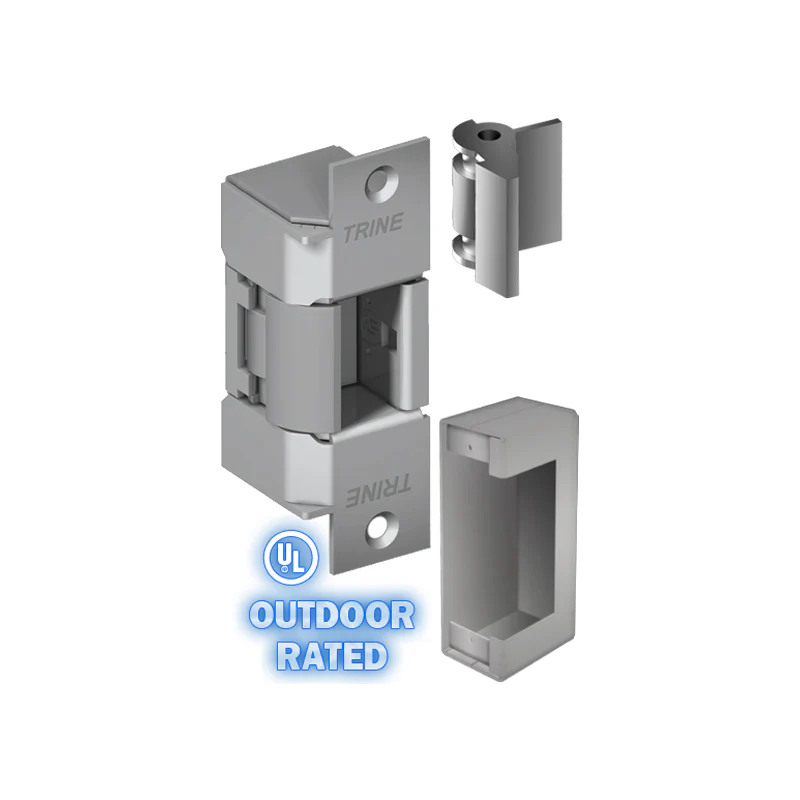

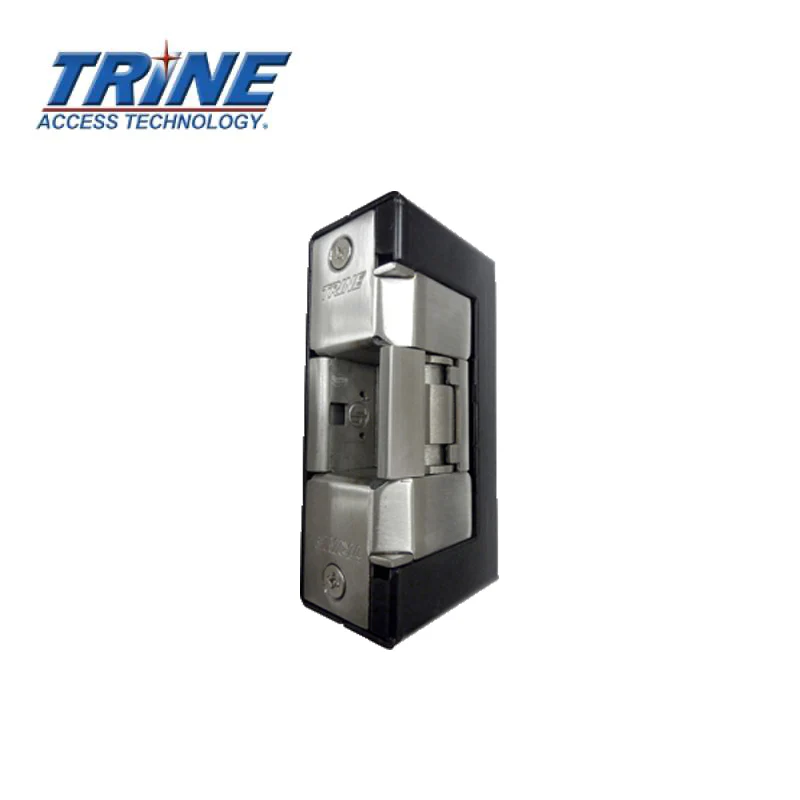

Trine - 400CMRP - ANSI Electric Strike Outdoor Gate Solution - Stainless Steel - Right Handed - Grade 1

TRN-400CMRP-32D-RH

The Outdoor gate solution comes with the gatebox. It handles Cylindrical and Mortise Locks, like the 400, and comes with the Latch so it can be used with Rim Panic Exit Devices, like the 400RP.

EN400CMRP Features:

• Perfect for exterior doors and gates. CMRP includes the Gatebox, the RP Latch (for Rim Panics) and is 12 & 24 DC
• Superior Strength — 2,000+ lbs UL® tested.
• Superior Life — Durability of 1,000,000+ life cycles
• Superior Application – Outdoor UL^® rating allows the strike to be used anywhere – especially good for gates.
• For a more traditional rim panic strike with the outdoor rating, please see the EN800(3/4″ thick) or the EN850 (1/2″ thick)
• Fail-secure/Fail safe field reversible on DC units.
• Grade 1 Strike — Contains a one-piece locking mechanism with one Solenoid — fewer parts mean fewer problems.
• Left Handed

EN400RP Specifications:

• UL® Listed 1034 – Indoor/Outdoor Burglary Resistant
• NYC MEA 79-01-E

Voltage	Current/Amps	Ohms (Ω)	Duty	Sound	Wire Color
12DC	0.743/0.298	13.0	Intm./Cont.	Silent	Red
12AC	0.715/0.277	13.0	Intm./Cont.	Silent	Red
24DC	0.397/0.170	13.0	Intm./Cont.	Silent	Red
24AC	0.378/0.173	13.0	Intm./Cont.	Silent	Red

Downloadable content:

• EN400CMRP Catalog page
• EN400 Dimensions
• EN400RP Dimensions
• EN400-Gatebox Dimensions
• EN400/CMRP Frame Prep
