Trine - 323478F-LC - Cylindrical & Deadlatch Electric Strike - The Ansi Solution - Fire Rated ANSI - Grade 1
We made our small, versatile, fit anywhere 323478 kit FIRE RATED. Making it the smallest fire rated electric strike solution that goes where other electric strikes cannot. We've also added the Patented horizontal adjustment feature -- Guaranteed not to move -- to both the small and tall faceplates. This is the "do more" and "cut less" electric strike you've been looking for.
- 3 Hour Fire Rated
- GRADE 1
- 1/8" Horizontal adjustment on both the 478 faceplates as well as the 234 faceplates.
- 12-24 AC and DC - Surge and Kickback protection included.
- All solid stainless construction.

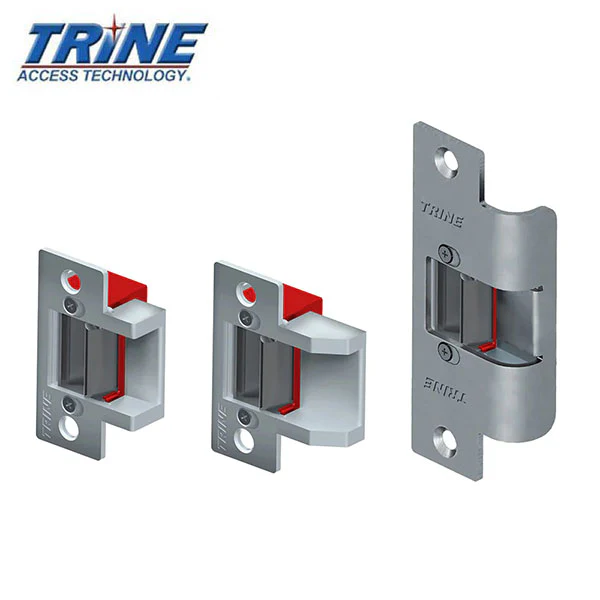

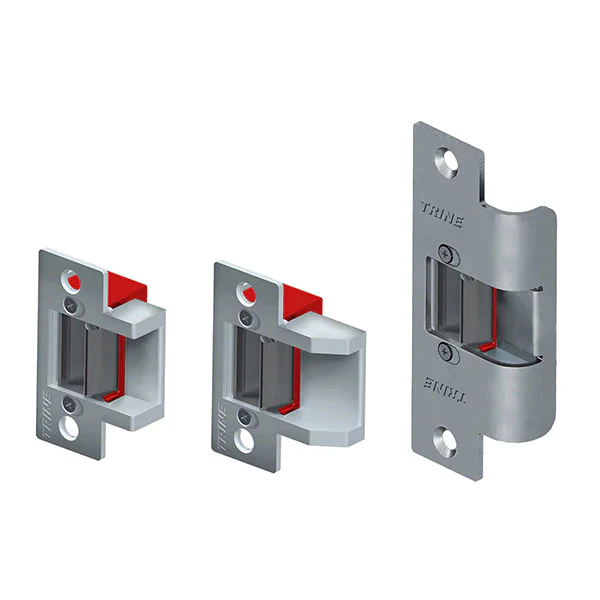

- Includes:
- One (1) 234-234X Adjustable Faceplate
- One (1) 478-32D Faceplate
- One (1) 30LC Fire Rated Mechanism
- One (1) 478-CCFP (Competitor Filler Plate)
| Volts | Current/Amps | Ohms (ā¦) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13 Ī© | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13 Ī© | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13 Ī© | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13 Ī© | Intm./Cont. | Silent | Red |
Line Conditioner:
This electric strike utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.
Downloads:
Original: $293.05
-65%$293.05
$102.57Product Information
