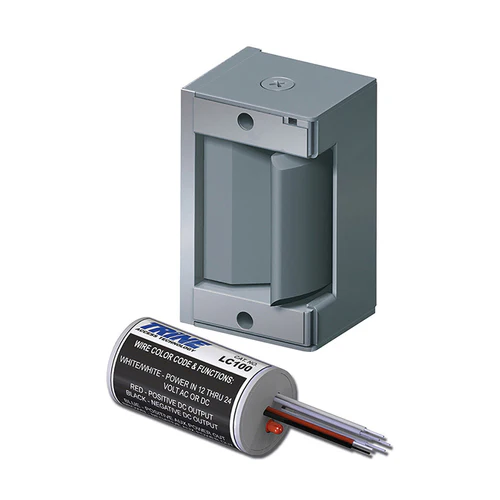

Trine - 30LC - 3000 Series - 11-29 AC/DC - Electric Strike with LC200 External Line Conditioner - Fire Rated ANSI - Grade 1



LC - Fail secure - standard action (unlocks with power)

TRINE 3000 SERIES THE SMALLEST ELECTRIC STRIKE IN THE WORLD FOR CYLINDRICAL LOCKS AND DEADLATCHES

Features:

• GRADE 1
• 500,000 + life cycles
• 1,500 + lbs. holding force (1,200 lbs. for 334)
• Dynamic Force 70 ft/lb.
• Solid stainless steel latch and in the device body.
• Accepts a bolt with a up to 5/8” throw
• Non-handed Unit (except 458, 478 LO/RO)
• Fail secure - standard action (unlocks with power)
• Fail-safe - “RS” (locks with power)
• Mechanism spacers increase cavity depth up to 1/8”
• Available in 12 or 24 volts DC or with a Line Condition (LC200) which allows 11 through 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty (use RS for Fail Safe configuration) - must use LC200



Volts	Current/Amps	Ohms (Ω)	Duty	Sound	Wire Color
12DC	0.743/0.298	13 Ω	Intm./Cont.	Silent	Red
24DC	0.397/0.170	13 Ω	Intm./Cont.	Silent	Red
12AC	0.715/0.277	13 Ω	Intm./Cont.	Silent	Red
24AC	0.378/0.173	13 Ω	Intm./Cont.	Silent	Red
