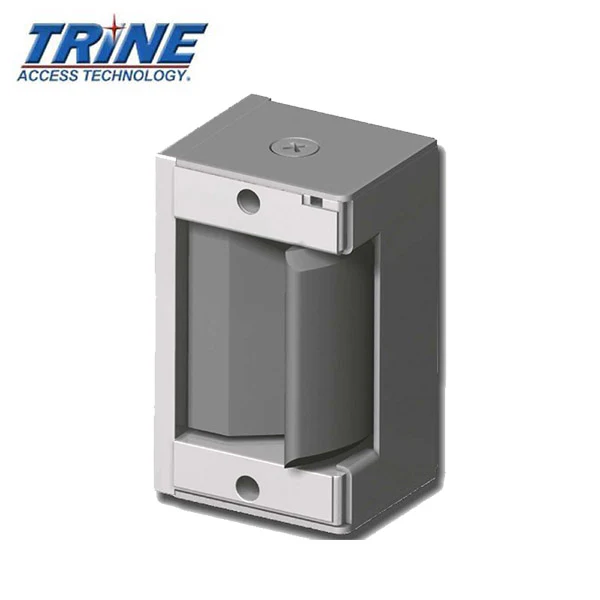

Trine - 3012 - 3000 Series - 12 DC - Electric Strike - Fire Rated ANSI - Grade 1

Trine 3000 Series - The Smallest Electric Strike In The World For Cylindrical Locks And Deadlatches

Features:

• GRADE 1
• 500,000 + life cycles
• 1,500 + lbs. holding force (1,200 lbs. for 334)
• Dynamic Force 70 ft/lb.
• Solid stainless steel latch and in the device body.
• Accepts a bolt with a up to 5/8” throw
• Non-handed Unit (except 458, 478 LO/RO)
• Fail secure - standard action (unlocks with power)
• Fail safe - “RS” (locks with power)
• Mechanism spacers increase cavity depth up to 1/8”
• Available in 24 volts DC or with a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty (use RS for Fail Safe configuration) - must use LC100

Downloads:

• 3000 Series Catalog
• 3000 Series Dimensions
• 3000 Series Instructions
