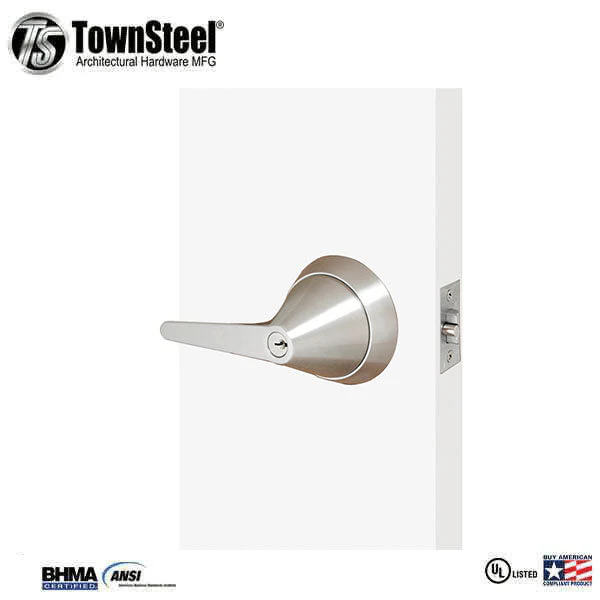

TownSteel - TRX-L - Ligature Resistant Cylindrical Lockset - Heavy Duty - Optional Function - Standard Cylinder - Fire Rated - Stainless Steel - Grade 1

The TRX-L is an ANSI Grade 1 sectional cylindrical lock with a ligature-resistant lever. TRX-L is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a ligature-resistant stainless steel lever and tamper-resistant mounting screws. The TRX-L can be mounted on both a wood and metal door.

• Ligature-resistant stainless steel lever
• Tamper-resistant mounting screws
• Mount onto wood or metal door
• Certifications: ANSI/BHMA Grade 1, UL Listed. Meets BAA and ADA requirements.

Series	TRX
Ligature Compliant?	Yes
Code Compliances	Grade 1 listed, Certified ANSI/BHMA
Backset	Standard, 2-3/4″
Function	(75) Passage, (76) Privacy, (84) Classroom, (87) Asylum,
Faceplate	1-1/8"
Cylinder	Standard, Schlage® 6-pin with “C” Keyway
Finish	630, Satin Stainless Steel

Downloads:

• Installation Instructions
• Template
