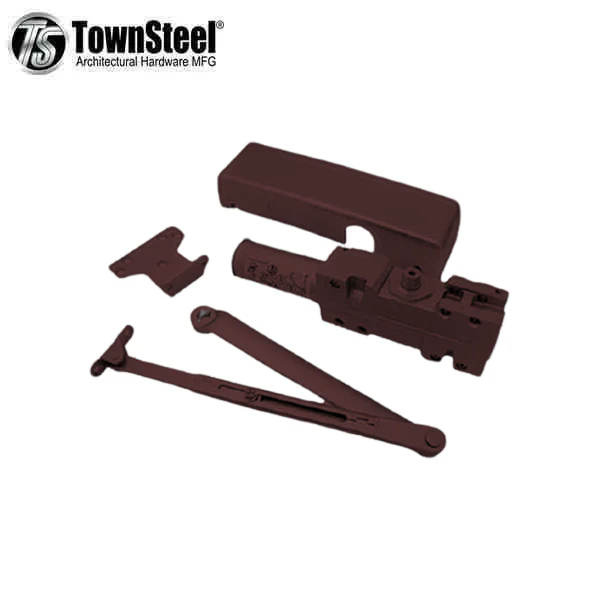

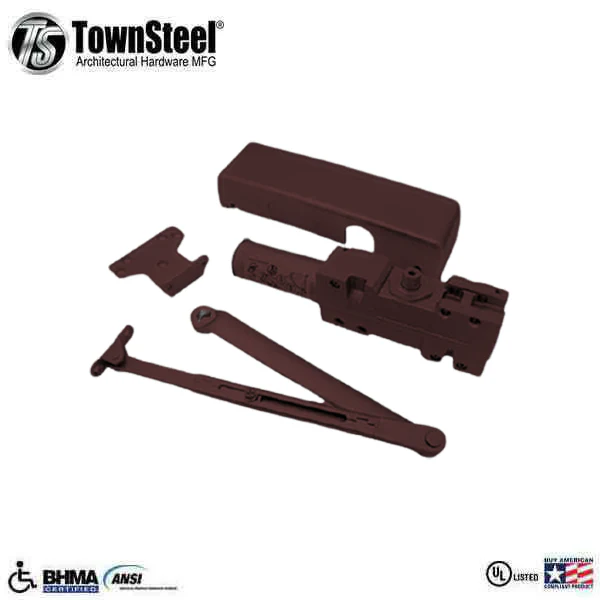

TownSteel - TDC40 - Hydraulic Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Hold to Open Arm - Duranodic - Grade 1
The TDC 40 is a heavy-duty, cast iron body, grade 1 door closer that is ANSI/BHMA certified and UL rated.
More Information Below
Specifications
| Body |
Heavy-duty cast iron body |
| Handing |
Non-handed |
| Function | Friction Hold-Open |
| Rack and Pinion |
Precision rack and pinion construction |
| Arm |
Regular Arm , Standard |
| Installation | Tri-Style installation, includes hardware and brackets to allow for regular, top jam and parallel arm installation |
| Spring Power |
Adjustable spring power from size 1 to size 6, factory present size 3 |
| Latch Valve |
Adjustable standard |
| Sweep Valve |
Adjustable standard |
| Back Check Valve |
Adjustable standard |
| Delayed Action Valve |
No Delayed Action |
| Fluid | All weather fluid, allowing door closer to perform in temperatures ranging from -31Ā°F to 140Ā°F |
| Needle Bearing |
Standard for higher efficiency |
| Piston | 1-1/2ā³ (38mm) diameter piston 5/8ā³ (16mm) diameter pinion 2-5/16ā³ (58mm) projection |
| Maximum Door Opening |
Regular arm 180Ā°, Parallel arm 180Ā°, Top jamb 180Ā° |
| Certifications |
ANSI/BHMA - A156.4 Grade 1 Certified UL - UL & ULC Listed BAA - BAA model meets guidelines of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
