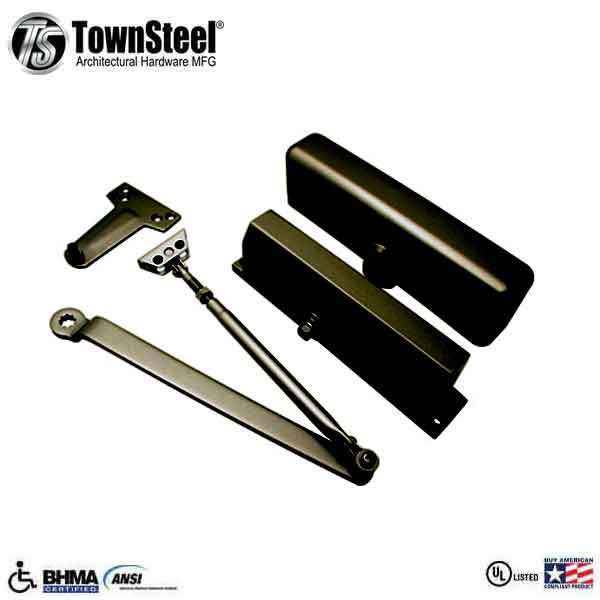

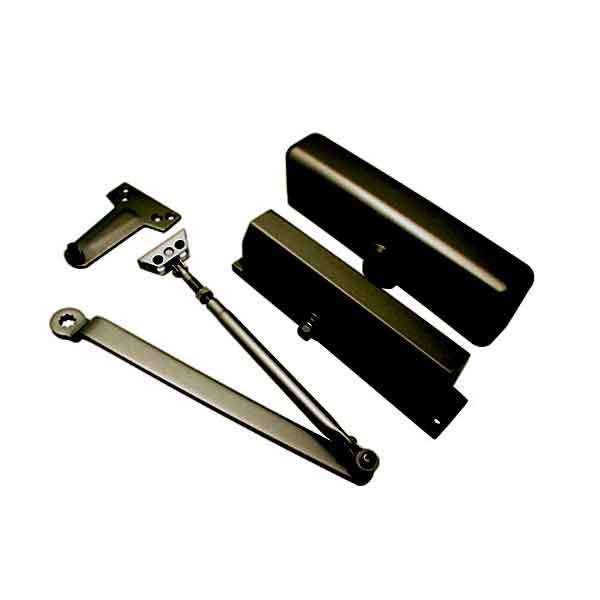

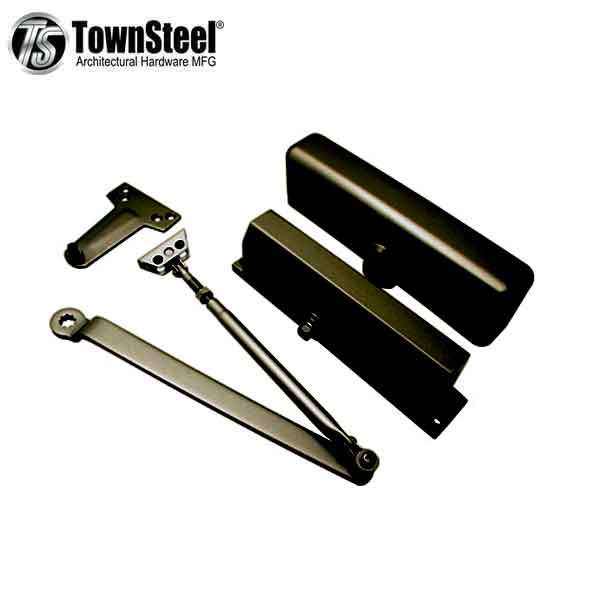

TownSteel - TDC-90- Hydraulic Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Standard Arm - Adjustable Size 2-5 -Plastic Cover - Duranodic - Grade 1
The TDC 90 is a heavy-duty, aluminum body, grade 1 door closer that is ANSI/BHMA certified and UL rated
More Information Below
Specifications
| Body | Heavy duty aluminum body |
| Handing |
Non-handed |
| Rack and Pinion |
Precision rack and pinion construction |
| Arm |
Regular Arm , Standard |
| Installation | Tri-Style installation, includes hardware and brackets to allow for regular, top jam and parallel arm installation |
| Spring Power |
Adjustable spring power from size 2 to size 5 , factory present size 3 |
| Latch Valve |
Adjustable standard |
| Sweep Valve |
Adjustable standard |
| Back Check Valve |
Adjustable standard |
| Delayed Action Valve |
No Delayed Action |
| Cover | UL listed molded plastic slim line cover standard, 3ā³ projection |
| Fluid | All weather fluid, allowing door closer to perform in temperatures ranging from -31Ā°F to 140Ā°F |
| Needle Bearing |
Standard for higher efficiency |
| Piston | 1-13/32ā³ diameter piston |
| Maximum Door Opening |
Regular arm 180Ā°, Parallel arm 120Ā°, Top jamb 180Ā° |
| Certifications |
ANSI/BHMA - A156.4 Grade 1 Certified UL - UL & ULC Listed BAA - BAA model meets guidelines of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
