TownSteel - MRX-S - 5-Point Ligature Resistant Mortise Lock with Arch Sectional Trim - Optional Function - Optional Handing - Fire Rated - Stainless Steel - Grade 1

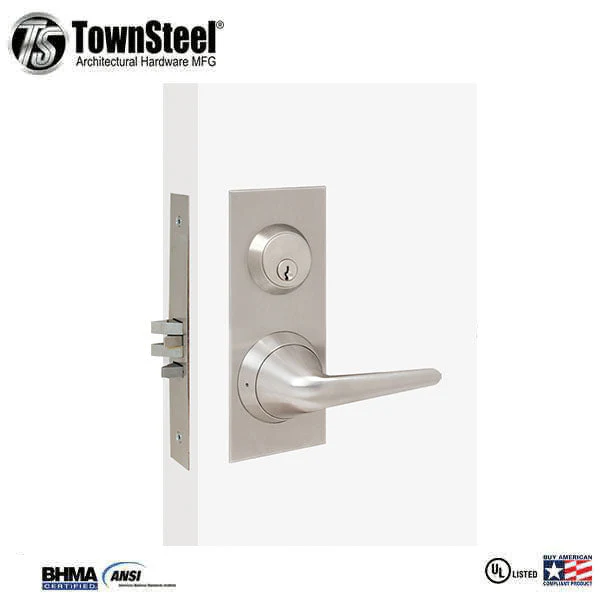

The MRX-E-L and MRX-S-L is an ANSI Grade 1 escutcheon mortise lock with a ligature-resistant lever. This lock is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a ligature-resistant stainless steel lever and tamper-resistant mounting screws. This lock includes a cylinder. The MRX-E-L or MRX-S-L can be mounted on both a wood and metal door.
- Ligature-resistant stainless steel lever
- With cylinder
- Sectional trim
- Tamper-resistant mounting screws
- Mount onto wood or metal door
- Certifications: ANSI/BHMA Grade 1, UL Listed. Meets BAA and ADA requirements.
| Series | MRX |
| Ligature Compliant? | Yes |
| Trim | Sectional, Lever trim |
| Code Compliances | Grade 1 listed, Certified ANSI/BHMA |
| Lockbodies |
Rigid, Auto Deadbolt |
| Backset |
2-3/4" |
| Functions | (02) Privacy/Bathroom, (07) Storeroom or Closet, (30) Institutional, |
| Handings | Left Handed, Right Handed |
| Door Thickness | 1-3/4" standard |
| Strike | 1-1/4ā³ X4-7/8ā³, Stainless steel, ASA |
| Faceplate | 1-1/4" x 8", stainless steel |
| Cylinder | 6 pin Schlageā āCā keyway, standard, 2 keys per cylinder |
| Cover Plate | 7-1/2" x 2-3/4" x 1/2", stainless steel |
| Arch Lever | Stainless steel |
| Thumb Turn | Stainless steel, ligature resistant, ADA |
| Mounting | Through-bolt, tamper resistant mounting screws, for wood and metal door |
| Trim | Sectional |
| Finish | 630, Satin Stainless Steel |
