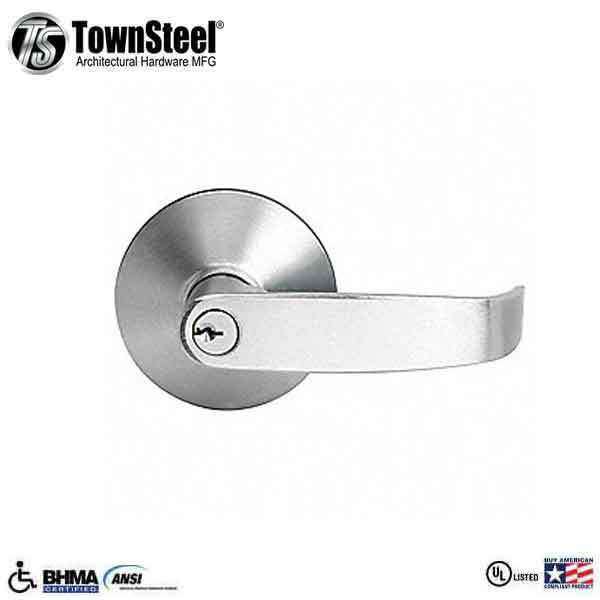

TownSteel - ED5500L - Dummy Lever Exit Trim - 2-3/4 " Backset - for ED5500/ED5600 Exit Devices - Dummy Function - Satin Chrome - Grade 1
TNS-ED5500L-02-26D
The ED5500L Dummy Lever Exit Trim is designed to work with ED5500/ED5600 series devices (not included). Exit Trim Only
More Information Below
Specifications
| Application |
Key-in-Lever Exit Trim Application For ED5500/5600 Series devices |
| Function | Key-in-Lever Exit Trim |
| Handing | Non-Handed |
| Door Thickness | 1-3/4ā³ to 2-1/4ā³ |
| Backset | 2-3/4ā³ standard, |
| Door Prep |
Fits and covers 161 cutout |
| Trim | Rigid in locked position |
| Rose | Wrought steel, 3-1/2ā³ in diameter |
| Lever |
Cast zinc, 4-3/4ā³ long |
| Cylinder |
Brass, 6 pin, Schlage āCā keyway, 2 keys per cylinder |
| Keying |
Keyed different - KD (standard) |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH) |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
