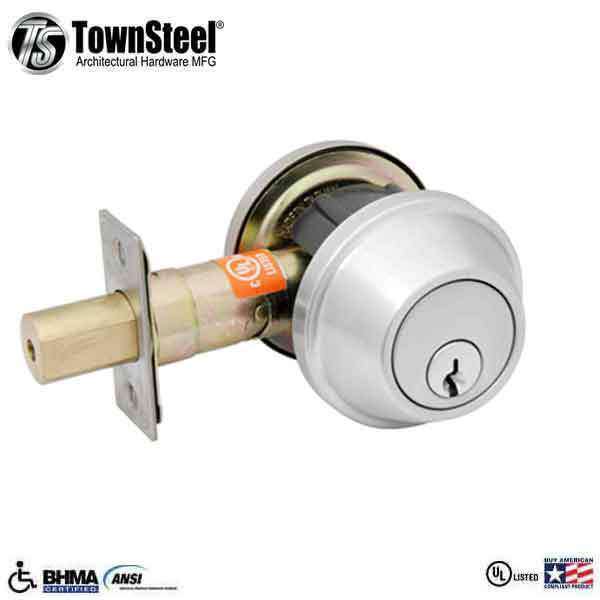

TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Stainless Steel - Grade 2
The DBT-61 is a Grade 2 Deadbolt that provides a positive deterrent to forced entry.
More Information Below
Specifications
| Door Thickness |
1-3/8”-1-3/4” |
| Backset | 2-3/8"~2-3/4" Adjustable Backset |
| Deadbolt | Solid brass with hardened steel rod insert, 1″ throw |
| Strike |
Rectangular with door reinforce 1-1/8” x 2-3/4” x 5/64”, square corner |
| Faceplate | 1-1/8” x 2-1/4” , square corner |
| Function | Single Cylinder |
| Cylinder | 6 pin solid brass cylinder, Schlage “C” keyway |
| Keying |
Keyed different - KD (standard) |
| Finish | 630 - 32D - Satin Stainless Steel |
| Certifications |
ANSI/BHMA Meets or exceeds A156.5-2001 Grade 2 requirements UL Listed 3-hour fire rating BAA Meets guidelines of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
