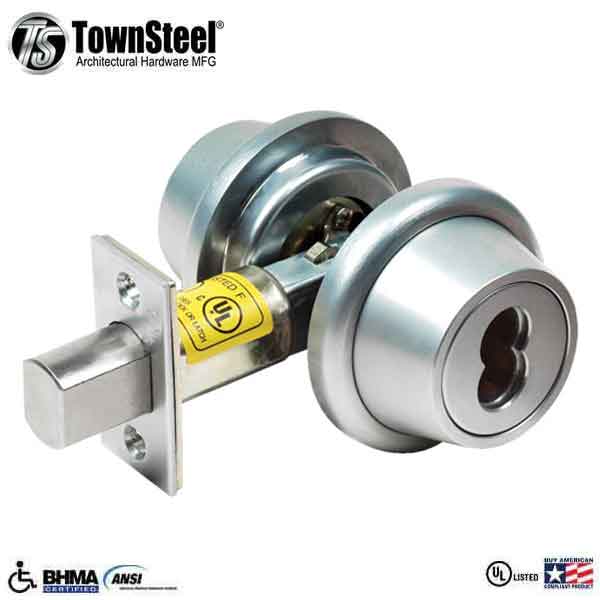

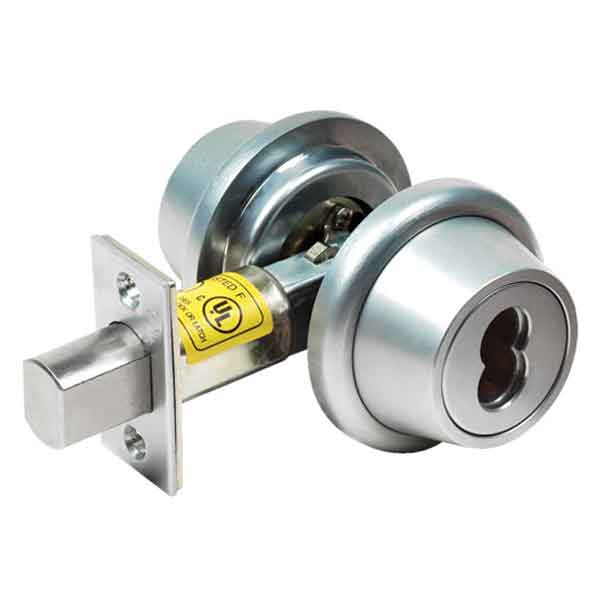

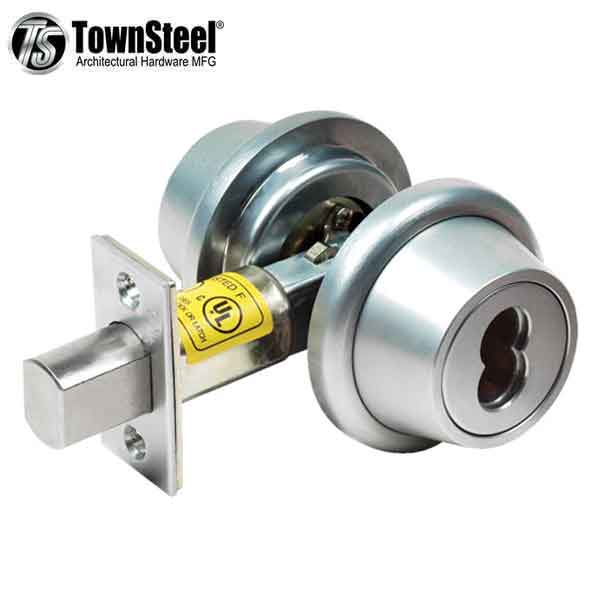

TownSteel - DBFI-62 - Commercial Deadbolt - Double - IC Core (SFIC) - 2-3/4 " Backset - Satin Chrome - Grade 1
TNS-DBFI-62-26D-2-3-4
The DBFI-62 is a Grade 1 Heavy Duty Commercial Deadbolt that provides a positive deterrent to forced entry. Designed for maximum security, the cylinder recesses into the door to resist blows attempting to move the lock. Fits Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately)
More Information Below
Specifications
| Application | To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired |
| Door Thickness |
1-3/8″ to 2″ |
| Backset | 2-3/4″ standard |
| Deadbolt | Solid brass with hardened steel rod insert, 1″ throw |
| Strike | 1-1/8″ x 2-3/4″ lipless |
| Faceplate | 1-1/8″ x 2-1/4″, square corner |
| Finish | US26D |
| Function | Double Cylinder |
| Door Prep |
2-1/8″ diameter for lock, 1″ for latch |
| Handing | Non-Handed |
| Cylinder | Fits Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately) |
| Keying |
Keyed different - KD (standard) |
| Trim Style | Sentinel(S) |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
ANSI/BHMA - Meets or exceeds A156.5-2001 Grade 1 requirements UL - UL 10C 3-hour rated BAA - Meets requirements of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
