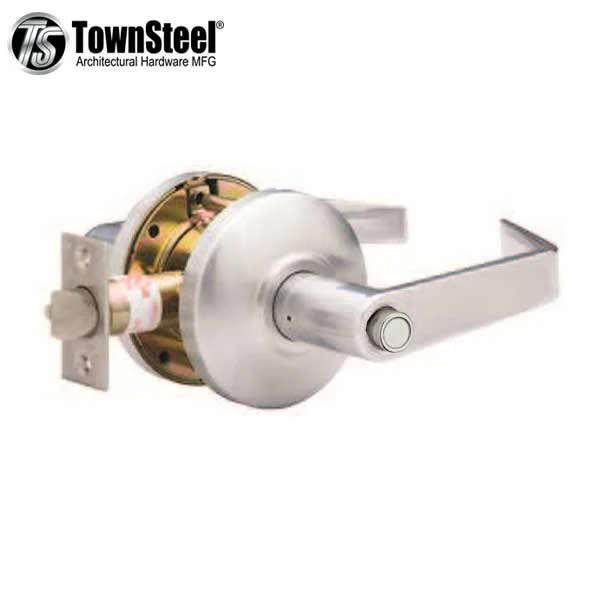

TownSteel - CSRC-76-S - Commercial Lever Set Handle - Clutch Lever Set - Conical Rose -2-3/4 " Backset - Satin Chrome - Privacy - Grade 2
The CSRC76S Series cylindrical lockset is heavy duty grade 2, and UL 10C 3-hour rated. It offers flat rose featuring clutched lever trims.
More Information Below
Specifications
| Lock Function | ANSI F76 Privacy |
| Handing | Non-Handed |
| Door Thickness |
1-3/8ā³-2ā³ |
| Backset | 2-3/4ā³ standard, |
| Faceplate |
Stainless Steel, 1-1/8ā³ x 2-1/4ā³ |
| Latch Bolt |
Stainless steel, 1/2ā³ throw, deadlocking on keyed functions |
| Strike |
ASA, 1-1/4ā³ x 4-7/8ā³ x 1-5/16ā³ standard |
| Rose Design | Conical Type 3-3/8" in diamter |
| Trim Style | Sentinel(S) |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
ANSI/BHMA Meets or exceeds A156.2-2011 4000 Series Grade 2 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act BAA Meet Guidelines of The Buy American Act CSFH Sentinel and Quest Lever Designs meet California State Reference Code (CSFH) |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Lock Function
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
