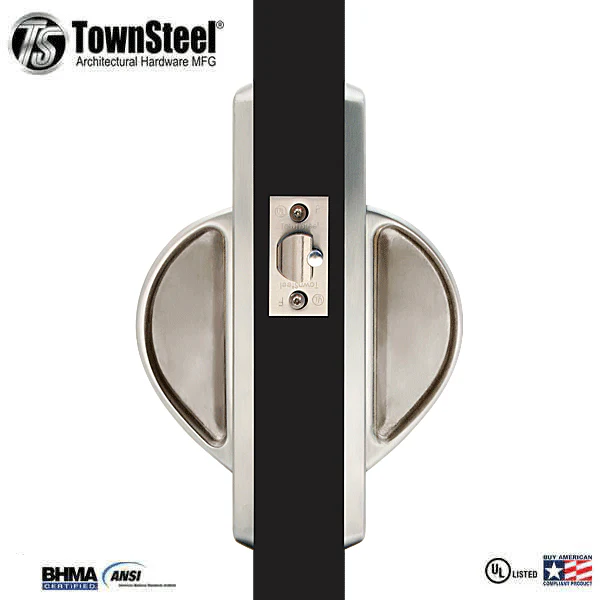

TownSteel - CRX-A - 5-Point Ligature Resistant Cylindrical Lock - Storeroom - SFIC Less - Stainless Steel - Grade 1

TNS-CRX-A-86-630-XH-IC

The CRX-A-86 Cylindrical Lock is used in facilities housing patients at risk. The 5-point ligature-resistant trim-arch helps prevent injuries.

• 5-Point Ligature Resistant Cylindrical Lock
• Storeroom Function
• SFIC Prepped Less Core
• Cylinder Not Included

• Handing optional
• UL/ULC 10C listed 3-hour rating
• Meets requirements of the Buy American Act
• Meets guidelines of the Americans with Disabilities Act





Door Thickness:	1-3/4"
Backset	2-3/4″
Lock Body	4"
Function	Storeroom
Latch bolt:	Stainless steel, 1/2″ projection
Faceplate	Stainless steel 1-1/8″ x 2-1/4″
Strike	Stainless steel, ASA, 1-1/4″ x 4-7/8″
Cylinder	SFIC Prepped for 6 pin, Cylinder Not Included
Finish	630 Stainless Steel
Certifications	UL/ULC 10C listed 3-hour rating Meets requirements of the Buy American Act Meets guidelines of the Americans with Disabilities Act
Manufacturer Warranty	10-year manufacturer limited warranty





Downloads:

• Installation Instructions
• Door Template
