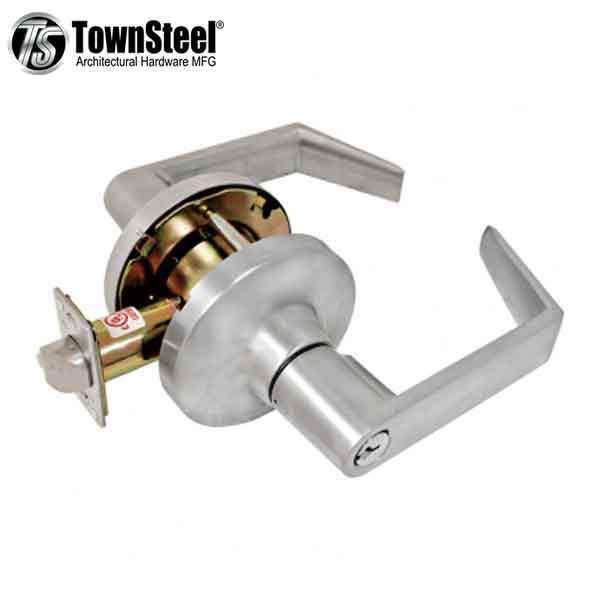

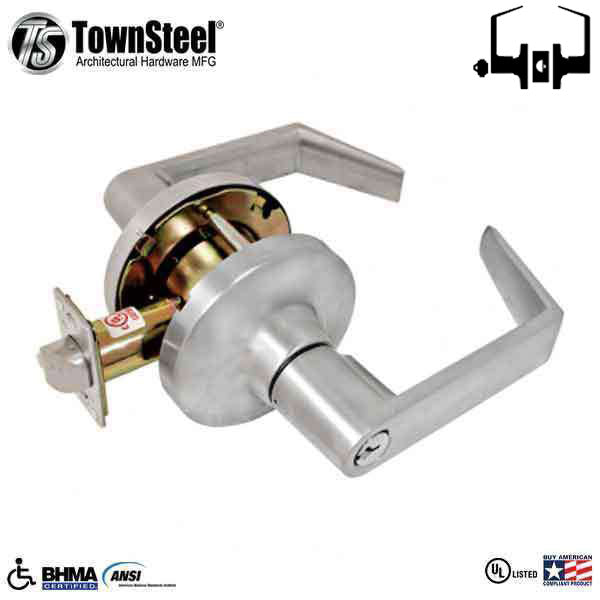

TownSteel - CDC-86-S - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 " Backset - Satin Chrome - Storeroom - Grade 1
The CDC86S Series Cylindrical Lockset is ANSI/BHMA A156.2-2011 Grade 1 certified and UL 10C 3-Hour rated Clutched lever trim. Independent torsion spring design provides effective lever support. Most BHMA functions are available. Easy installation
More Information Below
Specifications
| Lock Function | ANSI F86 Storeroom |
| Handing | Non-Handed |
| Door Thickness |
1-3/8ā³-2ā³ |
| Backset | 2-3/4ā³ standard, |
| Faceplate |
Stainless Steel, 1-1/8ā³ x 2-1/4ā³ |
| Latch Bolt |
Stainless steel, 1/2ā³ throw, deadlocking on keyed functions |
| Strike |
ASA, 1-1/4ā³ x 4-7/8ā³ x 1-5/16ā³ standard |
| Cylinder |
6 pin brass, Schlage āCā keyway, 2 keys per cylinder |
| Keying |
Keyed different - KD (standard) |
| Trim Style | Sentinel(S) |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH) |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Lock Function
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
