The Diagnostic Box - TDB500 - Clone Wizard - Transponder Key Cloning Machine

TDB-TDB500

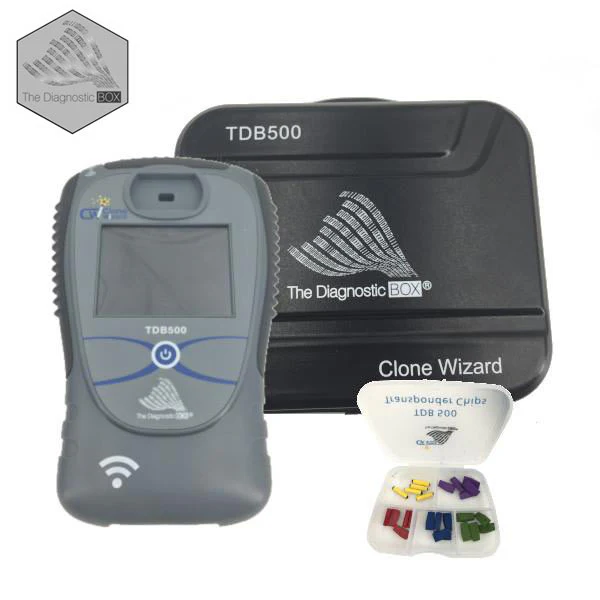

The Diagnostic Box TDB500 Clone Wizard Transponder Key Cloning Machine is a new simple cloning device from The Diagnostic Box.
This simple machine clones vehicle transponder keys using a clever color coded transponder, making this the most easiest and simple to use cloning tool in the world.

The TDB500 Clone Wizard has 2 modes of operation:
-EASY MODE offers simple cloning using our simple color cloning system, with 5 easy to use color transponders.
-EXPERT MODE offers more in depth transponder cloning, transponder precoding, transponder resetting, transponder preparation to name a few features.

Features

• Internal rechargeable battery making it both portable and convenient to use, especially when sniffing vehicle key data for ID46 type keys
• Full color LCD touch screen display
• Removable tray for cloning transponders
• USB connection for battery charging and PC updates

• RF Remote Frequency Test
• Bluetooth Connection
• WiFi Connection



Specifications



Dimensions	190mm (7.48") L x 120mm (4.72") W x 30mm (1.18") D
Weight	282g (0.62lbs.)
RFID Frequency	125 kHz, 134.2 kHz, 13 MHz
Battery	Nominal Voltage: 3.8V Typical Capacity: 1500 mAh
Display	Backlit Blue 128x64 LCD
RF Data Frequency Range	27 MHz to 900 MHz
Operating Temperature	32 to 122 Degrees F 0 to 50 Degrees C
USB Connection	2.0
Bluetooth Connection	4.0
